Three-wheeled recumbent bikes are particularly beneficial for Rehabilitation due to their stability, comfort, and ease of use. Here are some ways in which the Three Wheels of Magic (TWM) tadpole trike can be advantageous for Rehabilitation:
Stability and Balance:
Three Wheels of Magic offers excellent stability with three wheels, reducing the risk of falls during rehabilitation exercises. Their strength and balance make them suitable for individuals who may have balance issues or are at risk of falling.
Low-Impact Exercise:
Like traditional recumbent bikes, Three Wheels of Magic provides a low-impact form of exercise. The seated position and the supportive backrest minimize joint stress, making them ideal for individuals recovering from joint surgeries or arthritis.
Enhanced Comfort:
The reclined seating position on our recumbent trike provides ergonomic support, reducing the strain on the back and neck. The enhanced comfort can be especially beneficial for individuals with back issues or those who find traditional upright bikes uncomfortable.
Gradual Intensity:
Three Wheels of Magic often comes with adjustable resistance levels, allowing for a gradual increase in exercise intensity as the individual progresses in Rehabilitation. This adaptability is essential for tailoring the exercise to the person's specific needs in recovery.
Support for Neurological Rehabilitation:
Three Wheels of Magic can be helpful for individuals undergoing neurological Rehabilitation, such as those recovering from stroke or brain injuries. The controlled pedaling motion can aid in retraining neural pathways and improving coordination.
Improved Cardiovascular Health:
Riding a TWM recumbent trike provides cardiovascular benefits, promoting heart health and improving circulation. Cardio can be advantageous for individuals recovering from cardiac events or surgeries.
Full Body Engagement:
Three Wheels of Magic engages the upper and lower body, providing a full-body workout. The full engagement can benefit overall muscle conditioning and Rehabilitation of various muscle groups.
Accessible Design:
Our Three Wheels of Magic have an easy step-in design, making them more accessible for individuals with mobility challenges. This feature simplifies getting on and off the trike, which is crucial for those with limited mobility.
Outdoor Rehabilitation:
Three Wheels of Magic allows individuals to enjoy extensive outdoor activities during their Rehabilitation. Outdoor Rehabilitation can positively affect mental well-being and motivation, contributing to a more holistic approach to recovery.
Customization for Special Needs:
Some Three Wheels of Magic are designed to accommodate specific needs, such as adjustable seating, adaptive pedals, or additional support features. This customization can cater to the unique requirements of individuals with different physical conditions.

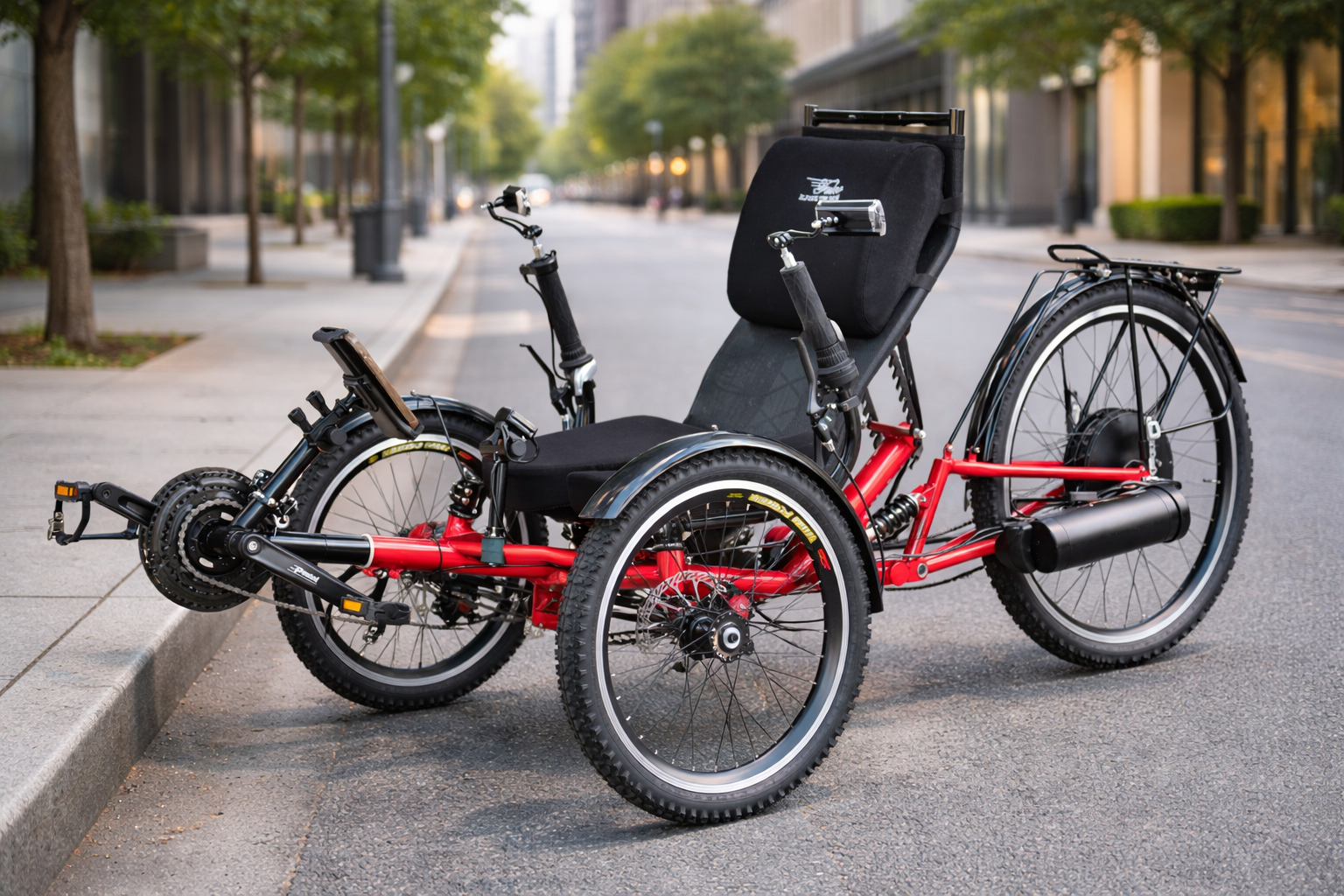

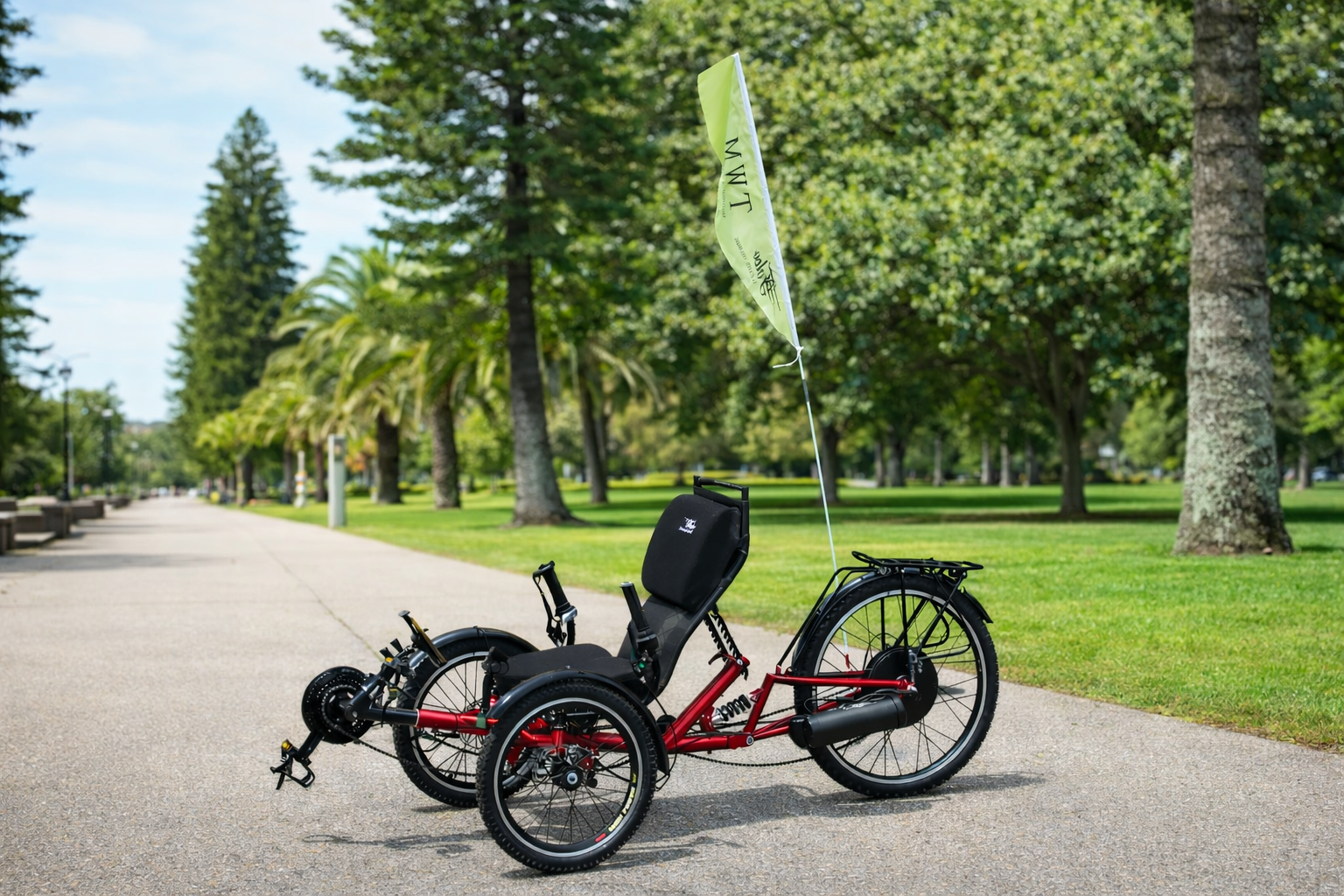

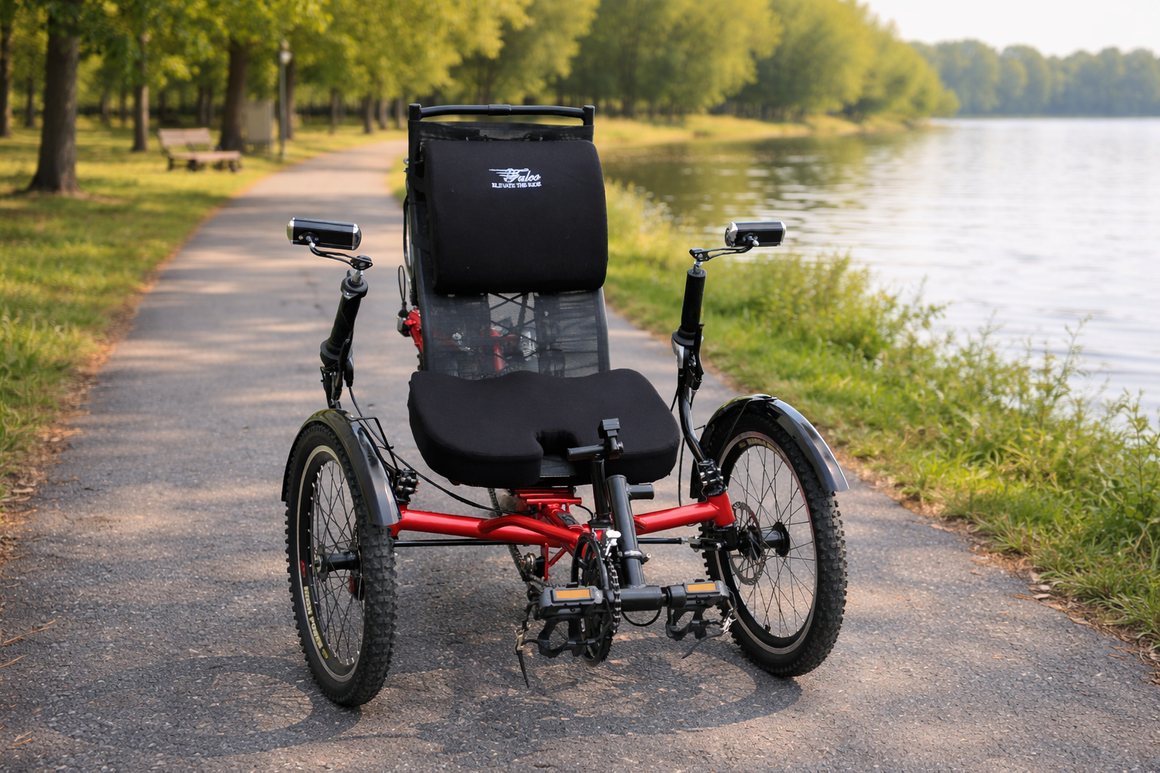

What defines the Three Wheels of Magic eTrike:
The Three Wheels of Magic eTrike redefines what's possible. The frame is made of Chromoly steel, delivering an extensive range and reaching impressive speeds of up to 28 mph in sublime comfort. Its lightweight lithium-ion batteries, strategically mounted to the frame with a low center of gravity, provide unprecedented power and stability, ensuring an unrivaled experience on the road.
At the heart of the Three Wheels of Magic lies the revolutionary Falco eDrive, consisting of three essential components designed to optimize your cycling journey.

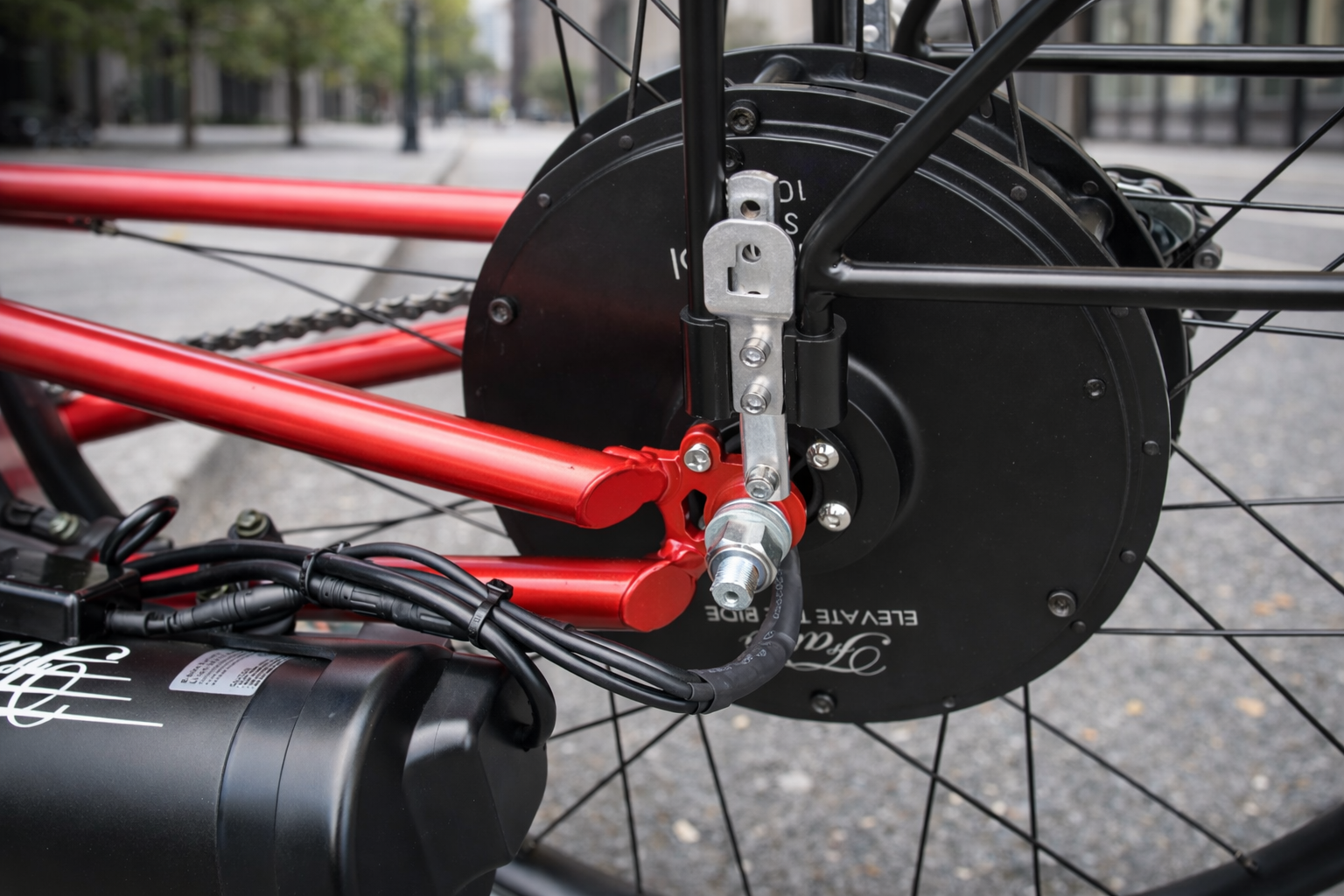

First, we have the electric rear wheel, a meticulously crafted unit with the world-renowned multi-patented Falco hub motor (Choice of 500 or 750W Motor). Complete with a rim, spokes, tube, and tire, this wheel seamlessly integrates into the rest of the frame, allowing for effortless engagement of electrical-assisted acceleration, sustained duration, momentum, and torque when you need it most.
Powering the Three Wheels of Magic is a high-capacity 36-volt lithium battery boasting 400Wh (Optional upgrade to 48V, 672Wh battery) and incorporating top-of-the-line Sanyo or LG cells. This battery ensures optimal performance and longevity. Of course, a charger is provided for convenient recharging whenever needed.
The Three Wheels of Magic also optionally features an intelligent power trainer, elevating your riding experience to new heights. This trainer works seamlessly with the Three Wheels of Magic, which receives signals from popular cycling apps such as Zwift, effortlessly adjusting resistance to simulate changing terrains and conditions to vibrating to replicate a realistic "road feel." This interactive feedback loop immerses you in the most engaging and lifelike riding experience imaginable wirelessly via Bluetooth Smart (BLE). Thus, preferred apps like Zwift can enhance your cycling journey like never before.
Falco Electric Assist System
Driven by a passion for cycling, Falco eDrive technology in the TWM incorporates multi-patented five-phase motor technology, delivering 40% more power than traditional three-phase motors. With zero freewheeling resistance, it ensures high efficiency in both pedal assist and regeneration.
Every Falco TWM hub motor has an iron-clad five-year warranty to guarantee your utmost satisfaction and peace of mind. We believe a sound investment should stand the test of time, offering uncompromising reliability and performance. Experience the comfort of knowing you own a world-class Falco TWM Trike system that delivers exceptional performance and represents the pinnacle of reliability.
Join us in embracing the power of cycling and its transformative potential. Whether rehabilitating, commuting, seeking fitness, enjoying a ride, or in a competition, the Falco TWM and its innovative eDrive technology are poised to change the world while conserving the planet one ride at a time. Get ready to embark on a journey like no other and witness the future of cycling unfold.

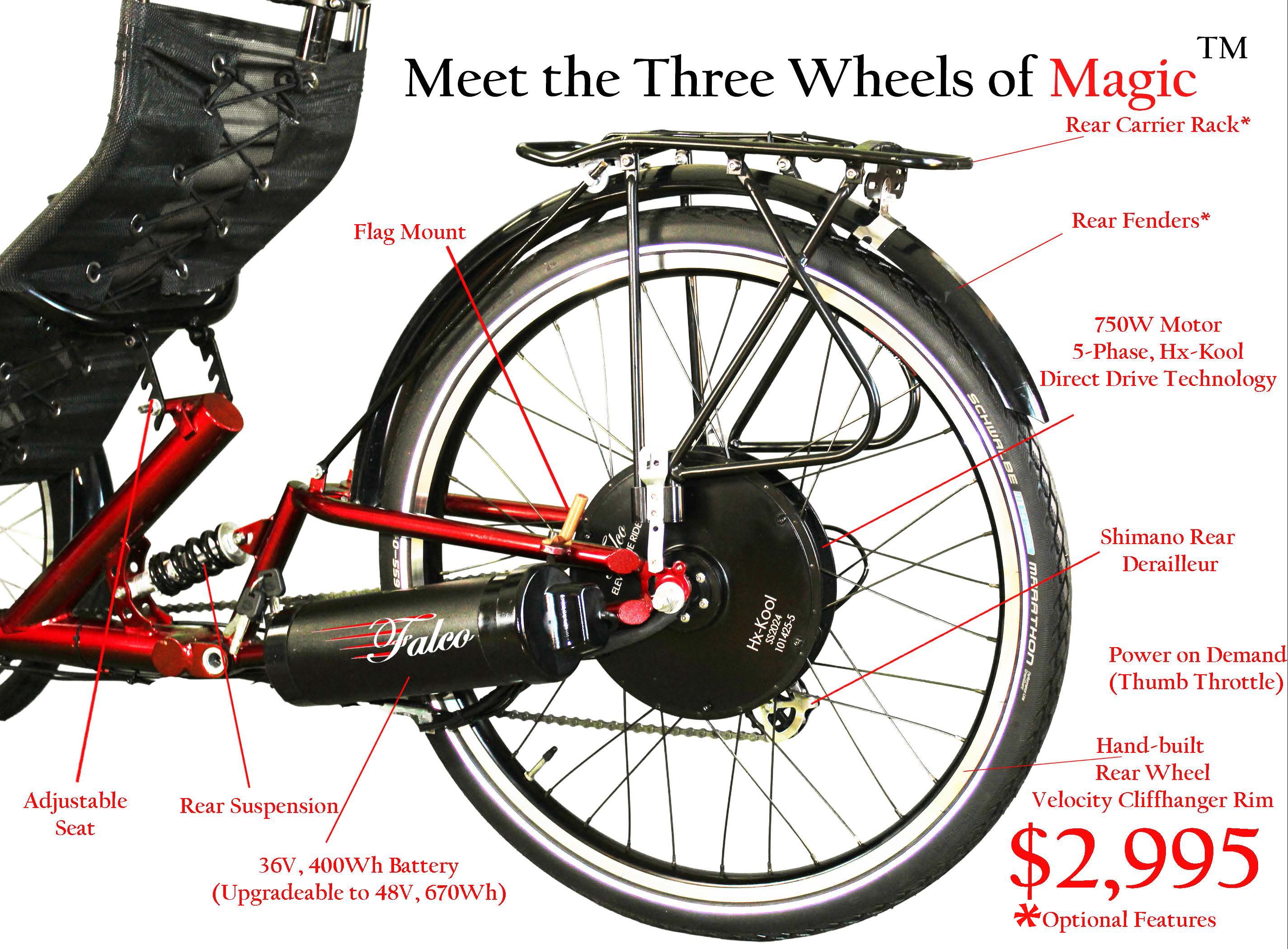

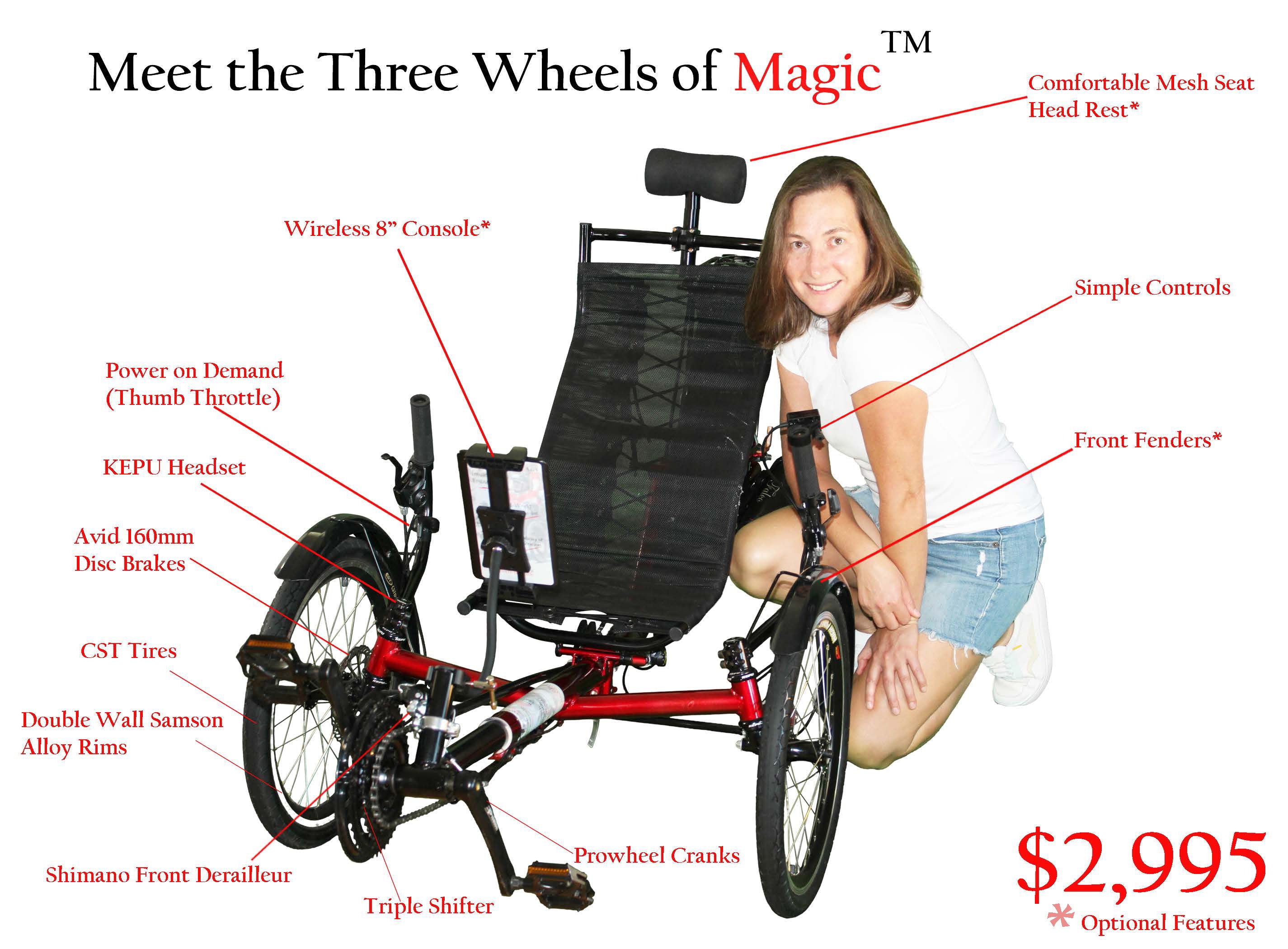

Features
eDrive System

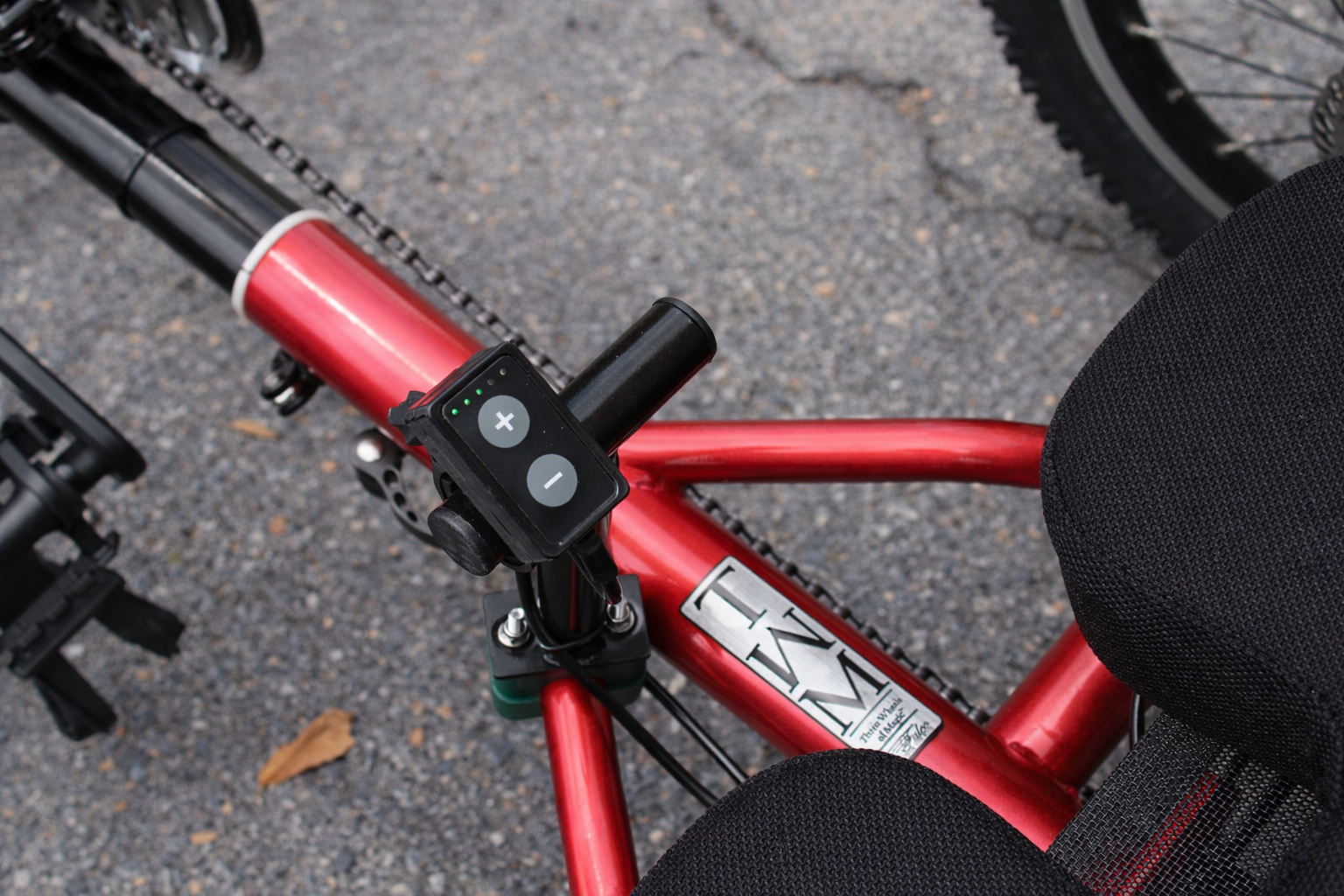

Motor - 750W Hx Hub Motor Battery - A Li 3 (36V, 400Wh, 11.6Ah) Battery with Holder or (upgrade to 48V, 672Wh, 14Ah) Battery with Holder Controller - Wired Plus Minus All-in-One Throttle - Thumb Throttle
Seating and Comfort

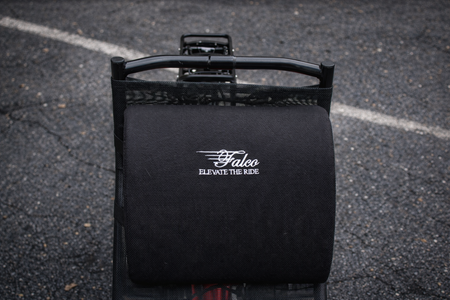

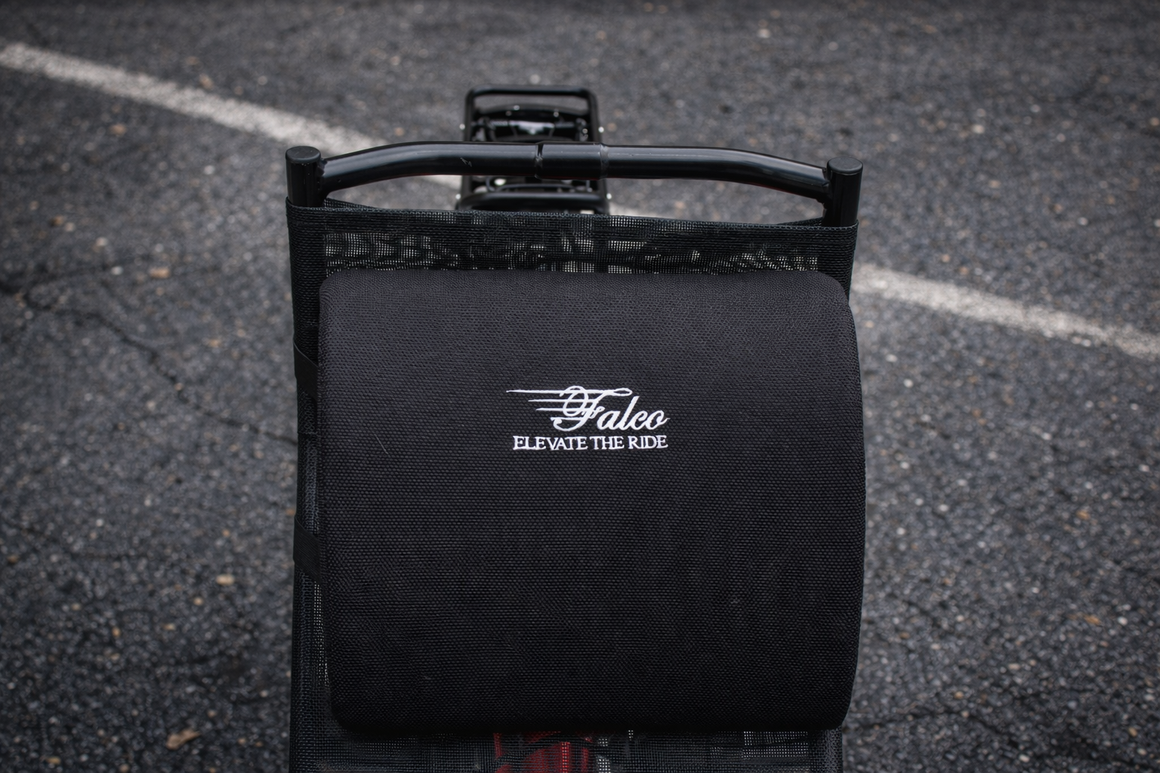

AirLyte seat sculpted for complete comfort Ergonomic Adjustable Seat Back
Compact
Safety and Design

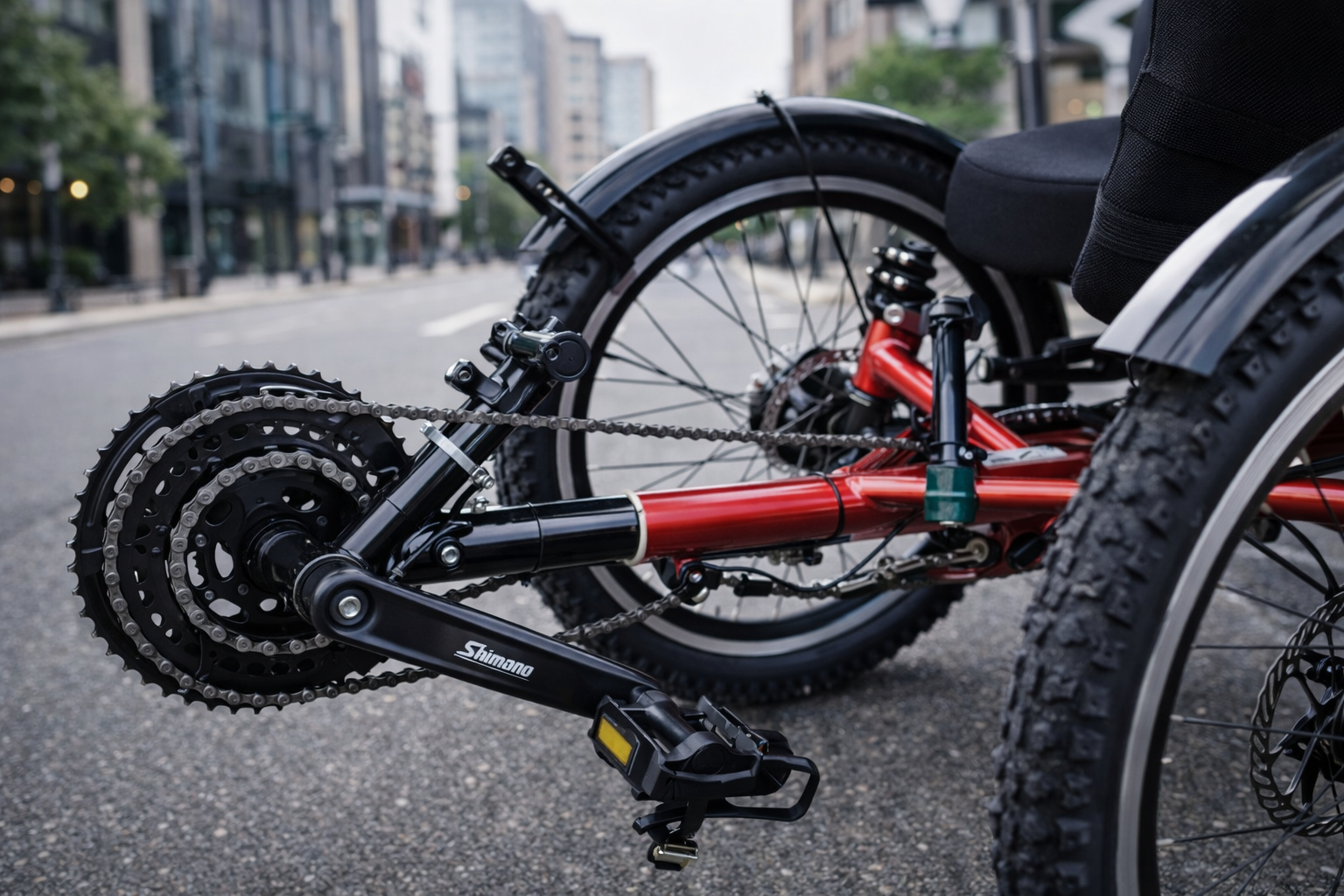

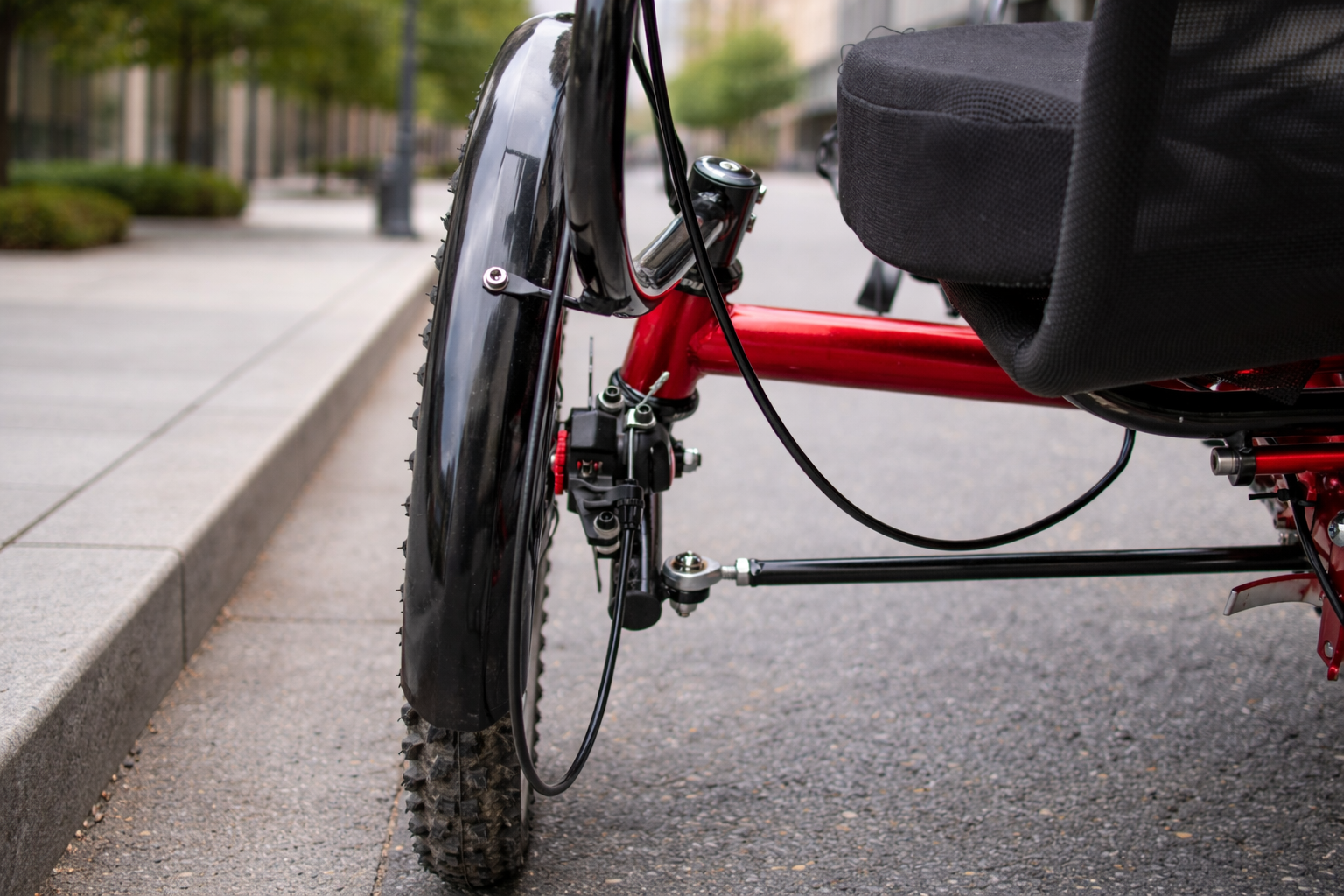

Multi-Purpose Clipless Pedals Self Centering Ackermann Steering Compensation Structural Front Boom Quick-Release Indexing Boom Clamp Aluminum Rod Ends Low Friction PTFE Flared Chain Tub
eDrive System Specs
Speed
28mph (speed pedelec) 20mph(US)/15mph(EU)
Wheel Sizes
26" (559)
Range
101mi/160 km(Level 1 Assist)
70mi/110km(Level 3 Assist)
Drivetrain Options

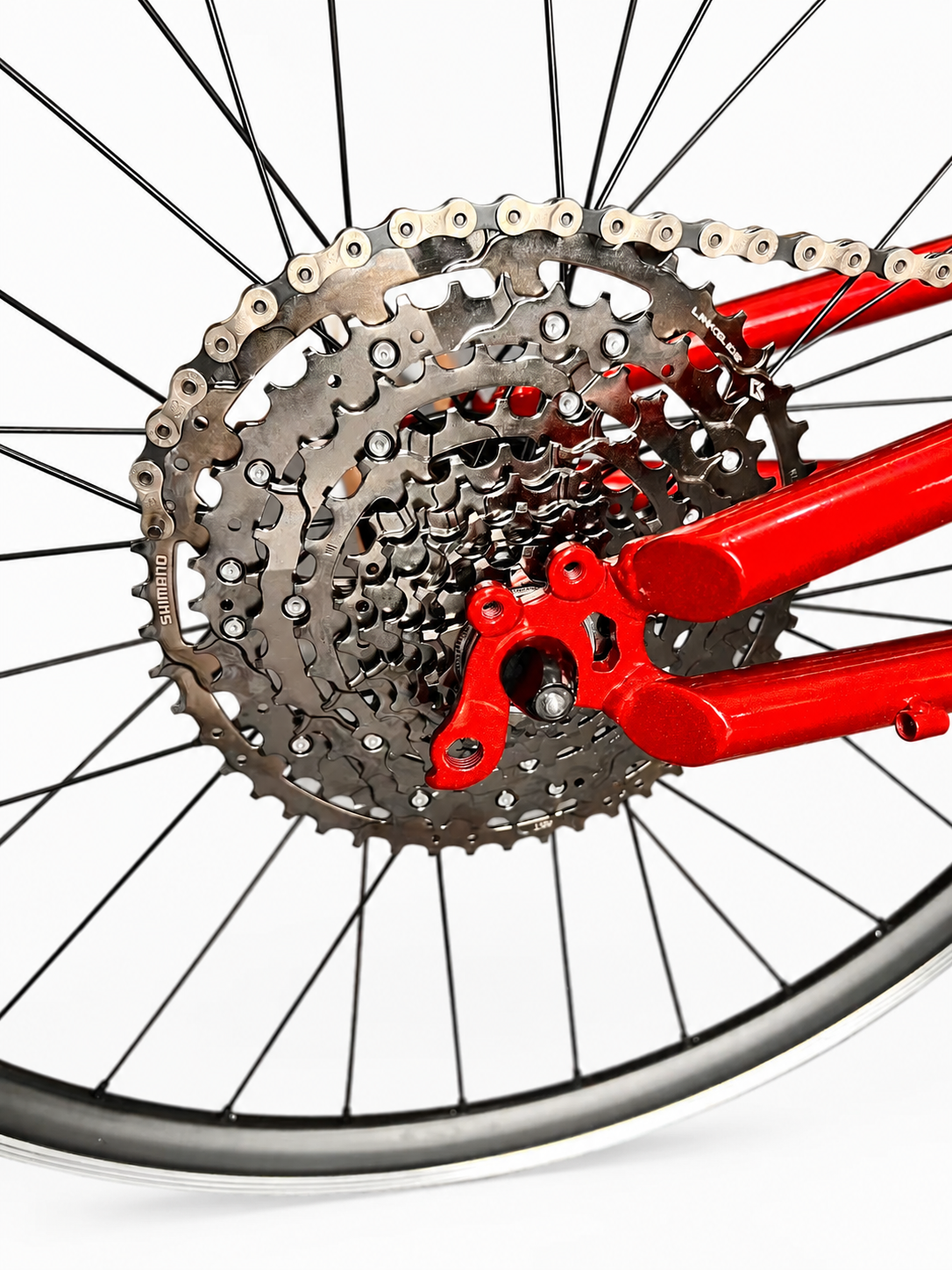

1-Speed (Standard) up to 10 Speed (Options)
Motor
5 Phase, Falco eDrive Zero Freewheel Resistance
Brake Type
Built-in Regenerative Brake & Dual Disk
Motor Weight
5.9kg/13lbs
Bicycle Dropout
135mm Vertical 135mm Horizontal
Max Torque
45Nm
Wireless Connectivity (Optional)
BLE (Optional)
Battery
400Wh Li-ion 36V, 417Wh, 11.6Ah
Upgrade to 48V 672Wh, 14Ah

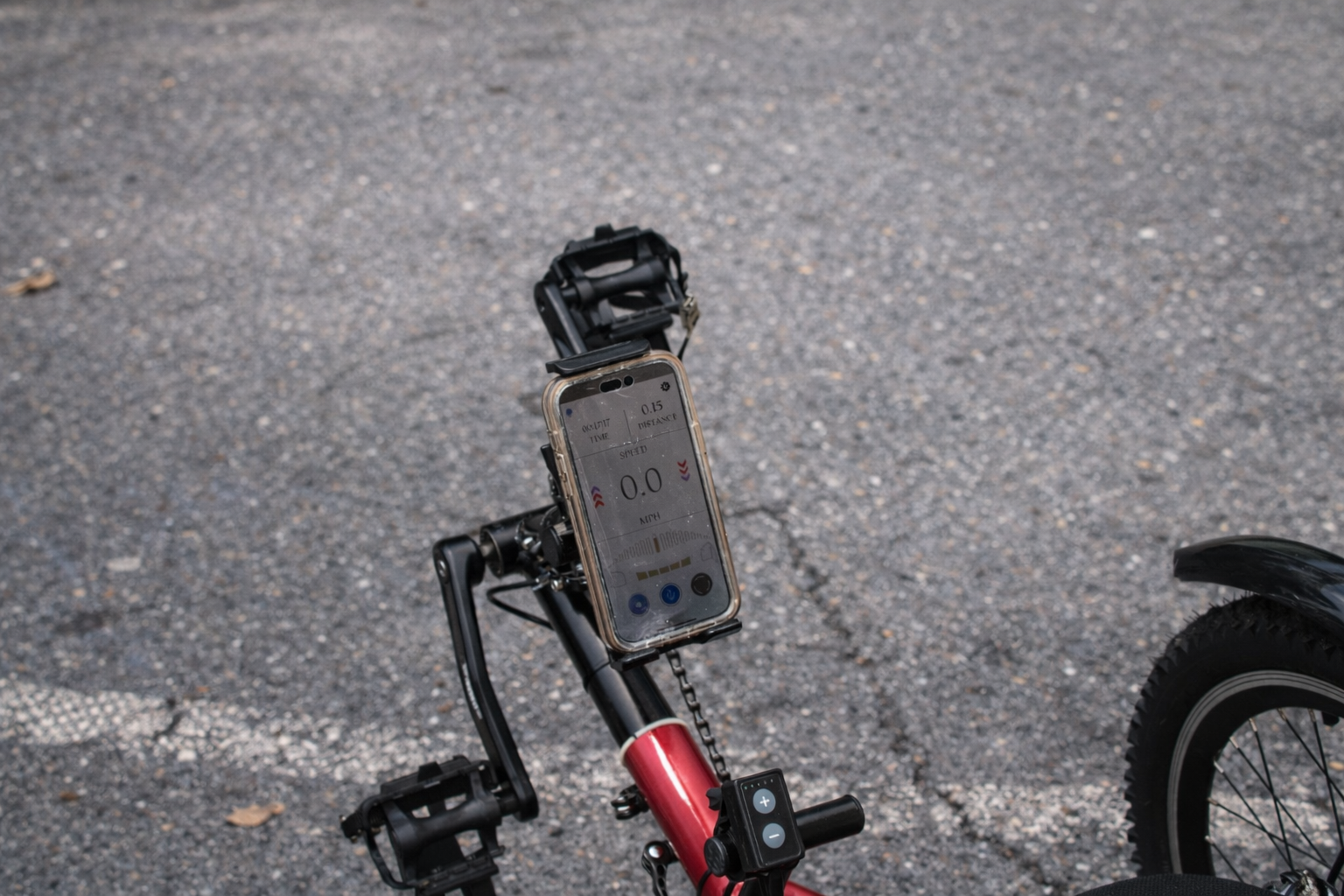

Smartphone (Optional)
iOS, Android
Charge Time
4 hours (75%) 6 hours (100%)
Device OS (Optional)
N/A
Battery Weight
2,5 kg/ 5.5 lbs.
App (Optional)
Falco Flash
Specification and Dimensions
US
metric
Folded Length
38.4 in
977 mm
Folded Width
25 in
637 mm
Folded Height
23.3 in
594 mm
Total Length**
64 in
1632mm
Total Width
25 in
637 mm
Total Height
30.5 in
775 mm
Wheel Base
44 in
1120mm
Wheel Track
30 in
760mm
Seat Angle
44-52 deg
Weight*
26.5 lb
12 kg
Seat Height
11 in
279 mm
Seat Width
16 in
405mm
BB Height**
13.7 in
350 mm
Ground Clearance
4 in
102 mm
Height w/ Seat Folded
26.5 in
673 mm
Turning Radius
9 ft
2.74 m
Rider Weight Limit
275 lb
125 kg
Rider X-Seam Range
39/46 in
99/117 cm
Brakes
Avid BB7 Disc Brakes

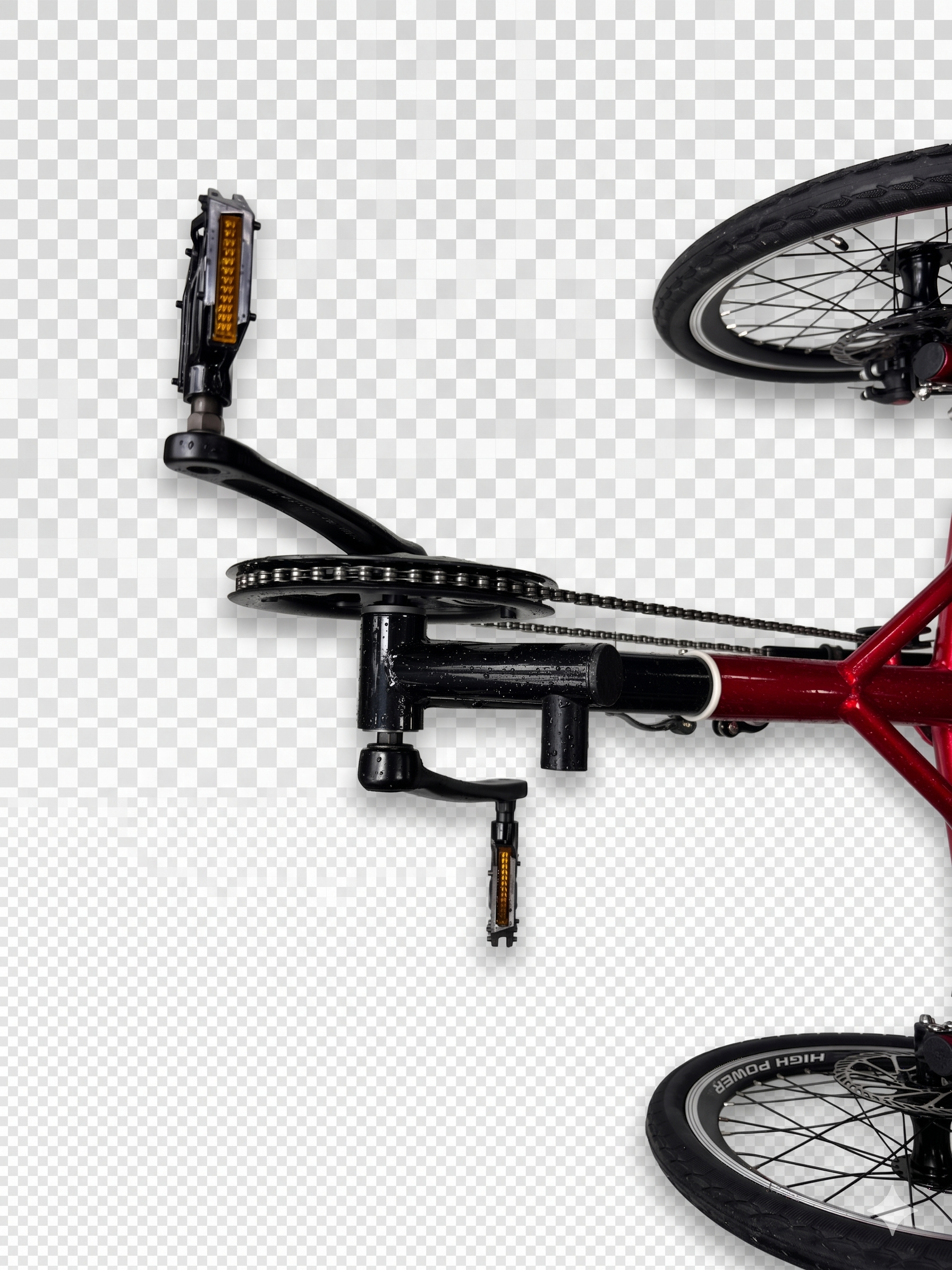

Pedals
Wellgo Platform Pedals
Frame
Chromaly Steel
Front Derailleur
3-Speed
Tires
CST City
Bottom Bracket
Square taper field cartridge
Rear Derailleur
Shimano Altus
Cassette
8-speed Shimano 31-8

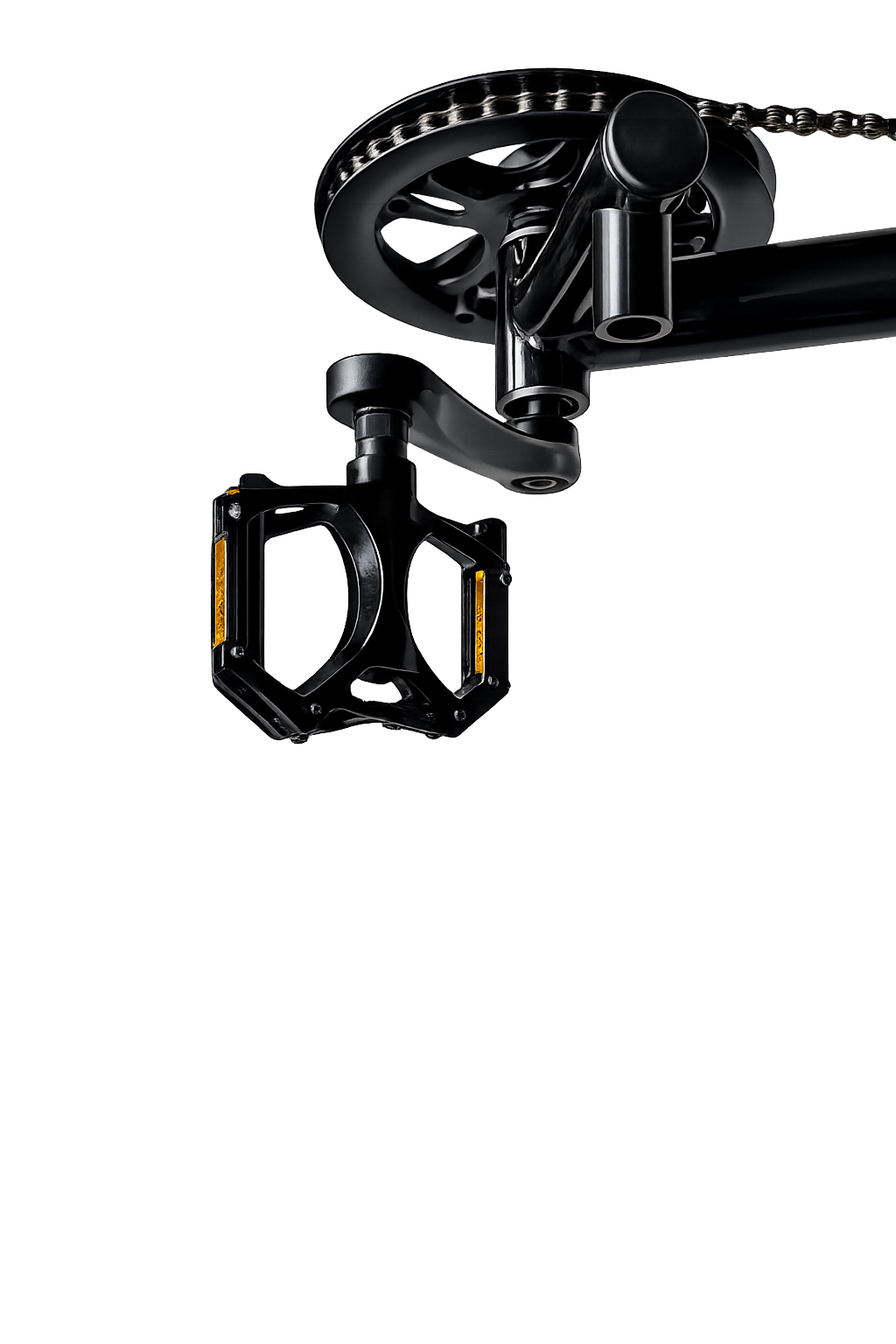

Pedal
Comfort Pedal

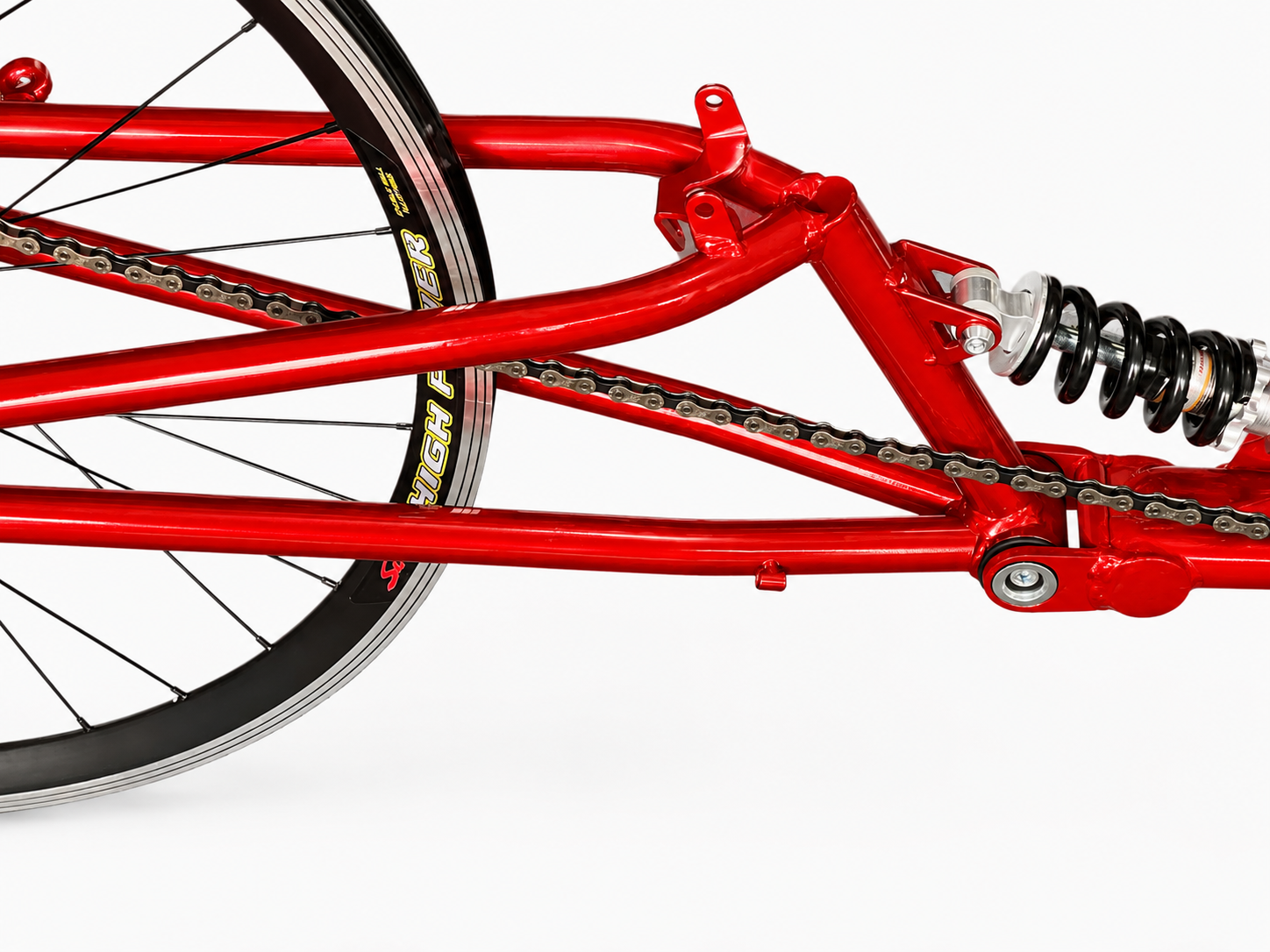

Chain
Shimano IG51
Load Limit (lbs.)
300
Steering System
Direct
Total Weight (lbs.)
65
Rims
Samson double wall
Color
As Shown
Three Wheels of Magic electric assist trike combines Zero Carbon high-speed trail fun, commuting, and advanced training into one core direct drive technology with tremendous benefits to the end user. The eTrike delivers a vast range and can achieve speeds of up to 28 mph. With its lightweight lithium batteries mounted to the frame, a rider experiences unprecedented power in the ride.
JOIN THE MANY WHO HAVE FOUND A SMARTER WAY WITH FALCO ON AN eTRIKE.
We believe in the power of cycling and that it can bring about sweeping changes to our world. Cycling's potential is enormous regarding its impact on commuting, fitness, regeneration, and saving our planet. This belief keeps us marching forward at a rapid pace. We believe that developed countries like the US and others can lead with our technological advances to benefit all. We can change the world through cycling together.
WHAT IS A SMART POWER TRAINER
A stationary exercise platform for road & mountain bikes, trikes, tandems, and electric bikes!
This portable, hardened steel indoor trainer (Optional) is easy to set up with quick connects, has eight levels of resistance, and folds and stows in a great package. From a light fitness level to a serious workout, resistance is controlled with an easy-to-fast selector on your handlebar. This unique stand transforms any electric bike, trike, or tandem into an intelligent interactive indoor power trainer.
Falco eDrive broadcasts power (watts) to apps such as Zwift, automatically allowing resistance variation to match changing terrain and conditions. Falco eDrive even vibrates to simulate a 'road feel.' This real-time feedback loop provides the most immersive riding experience. Falco eDrive connects to the apps wirelessly via Bluetooth Smart(BLE).
TECHNOLOGY BEHIND FALCO eDRIVE?
Falco eDrive technology is driven by our pure passion for cycling. The main components of Falco eDrive technology are:
Smart Wireless Technology offers a remarkable eco-system to enhance our cycling experience (Optional);
FIVE-YEAR WARRANTY
A sound investment should last a long time. Falco's direct drive technology dictates utmost reliability and performance. We want our customers to experience the ultimate performance, reliability, and comfort of owning a world-class eDrive.
