Product Details
Not sure it fits your bike or trike? Call 877-278-6323 or book a free consultation. We will check your frame, wheel size and drop-out before you order.

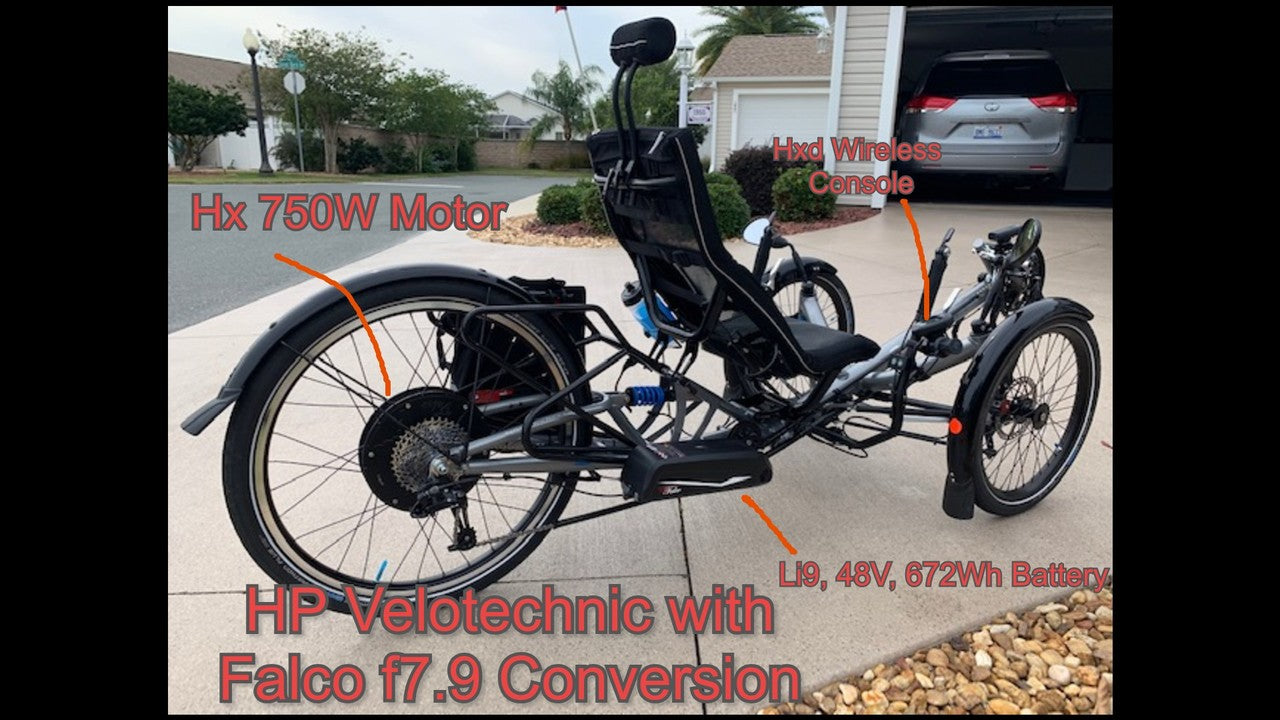

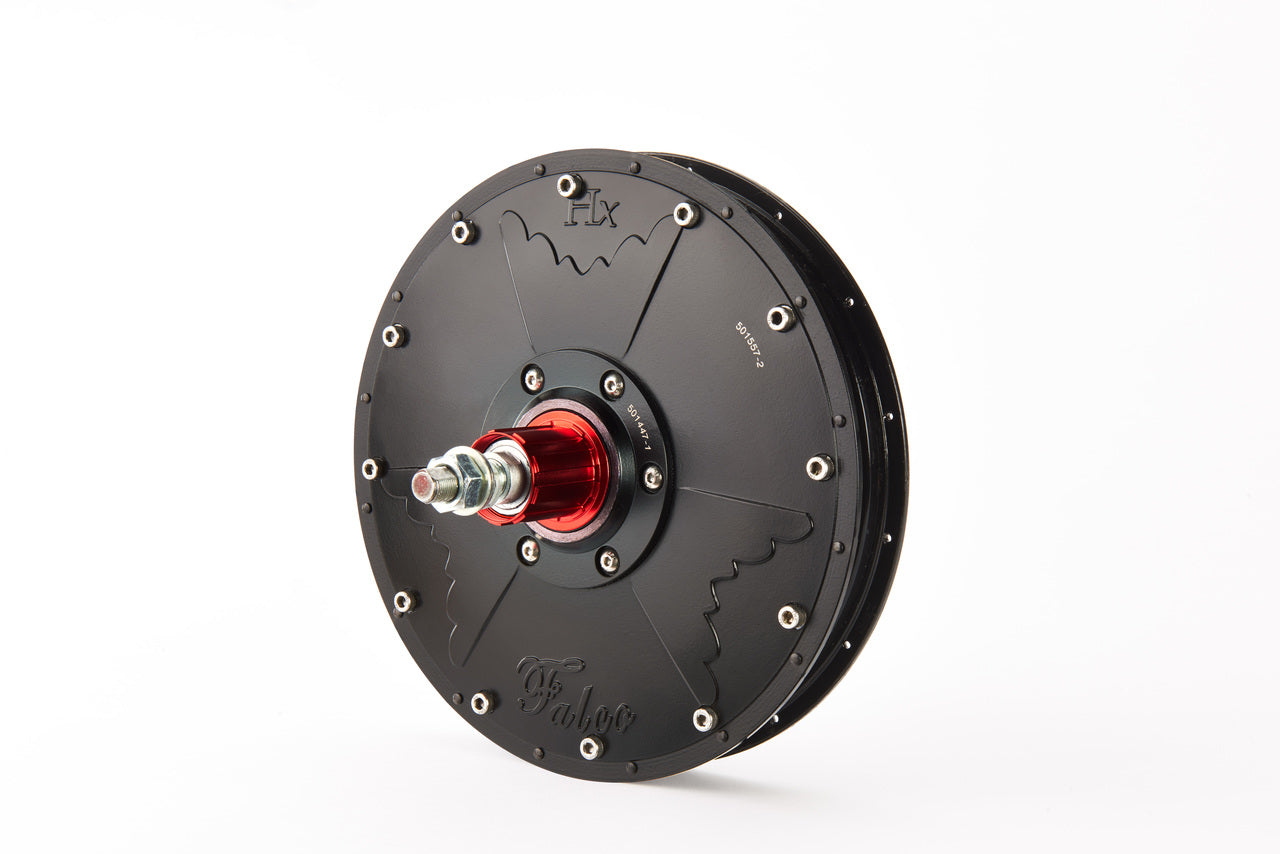

The Falco f7.9 is a 750 W, 48 V, 672 Wh electric drive that turns the bike, trike or tandem you already own into a smart eBike. The motor, controller, torque sensor and speed sensor are all inside the rear hub, so installation is a wheel swap plus a battery. It assists to 20 mph in the US (28 mph where legal), goes up to 120 miles on a charge at level 1, freewheels with zero resistance when the assist is off, and regenerates on descents. It is the same drive that powers the Three Wheels of Magic. Read what owners say in the customer stories.
What is in the box

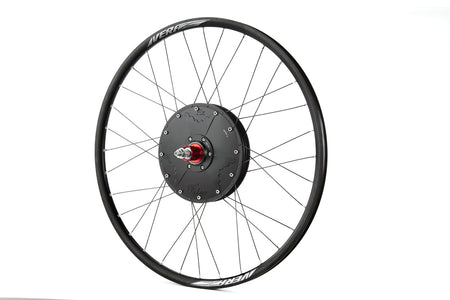

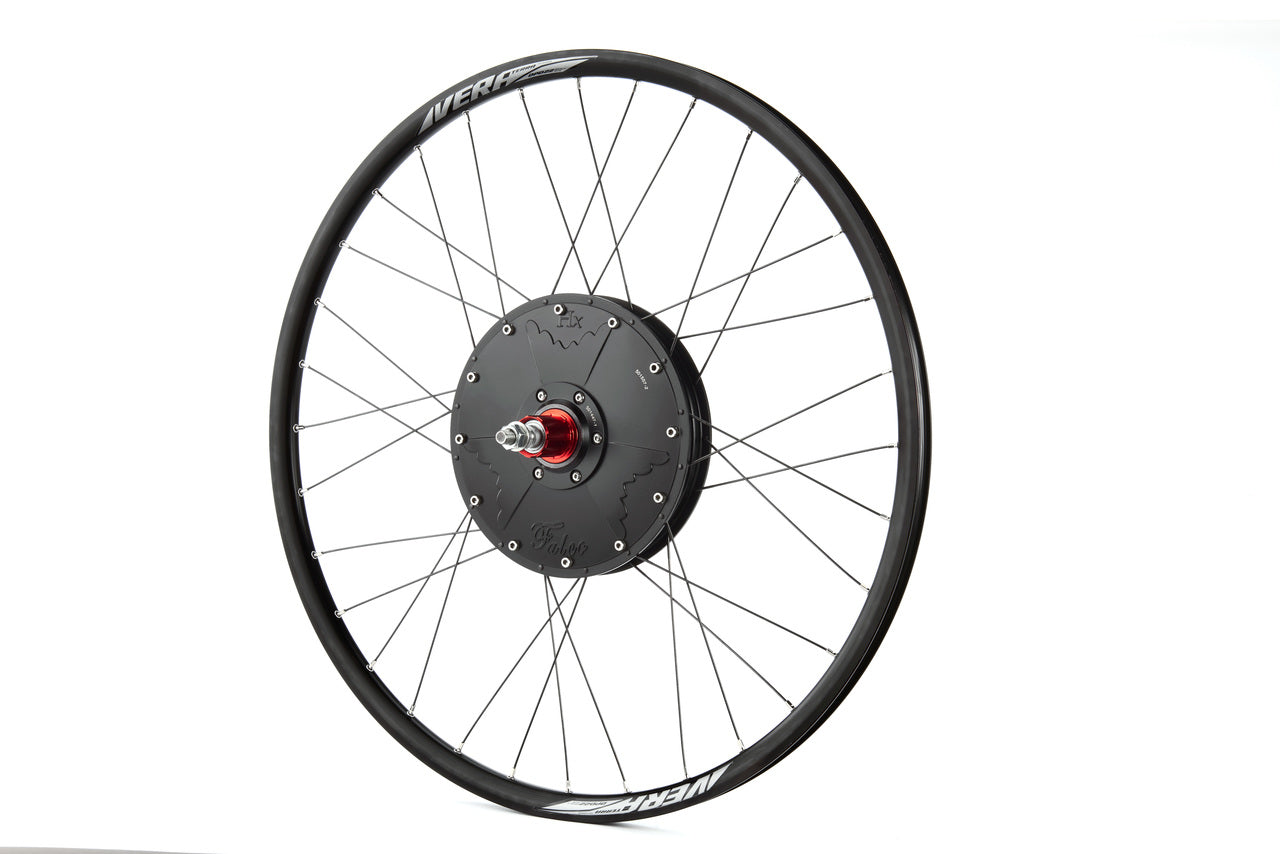

- The electric wheel: a complete rear wheel with rim, spokes, tube and tire, ready to drop into your frame. Sizes 700c, 29 in, 650B, 26 in, 24 in, 20 in and 16 in.

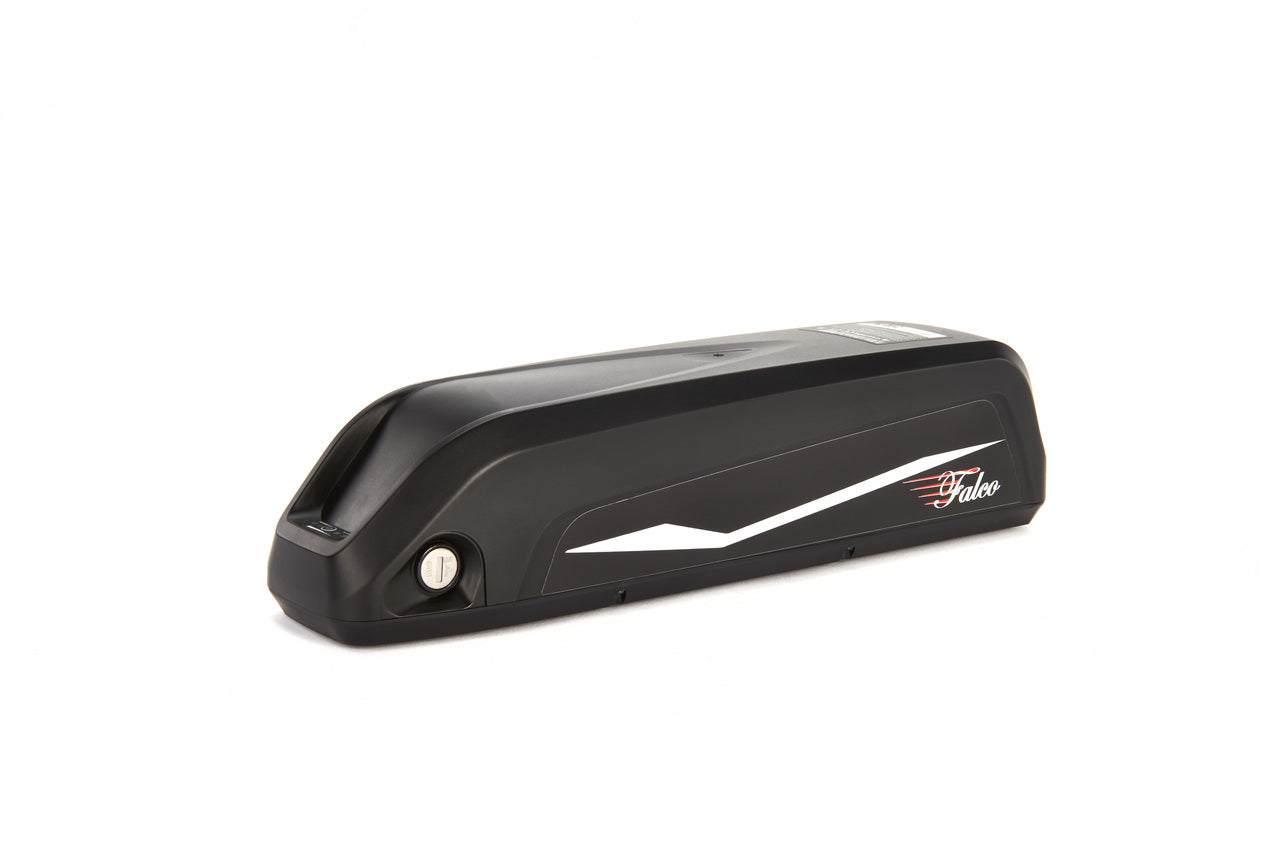

- The battery: 672 Wh, 48 V, 14 Ah down-tube lithium battery with Panasonic cells, charger and holder.
- Thumb throttle: compact, leaves room on the handlebar.

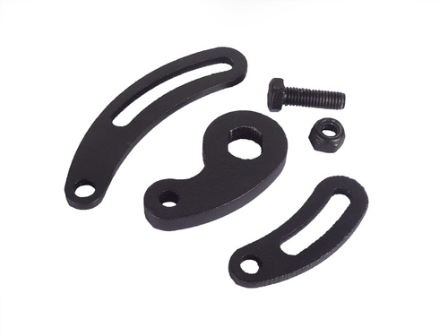

- Torque arm kit: extra strength for your frame drop-outs.
Specifications
| Motor | 750 W nominal, 5-phase Falco eDrive, zero freewheel resistance, 45 Nm, 5.9 kg / 13 lb |
|---|---|
| Speed | 28 mph (speed pedelec); 20 mph (US) / 15 mph (EU) |
| Range | 120 mi / 192 km at level 1 assist; 84 mi / 130 km at level 3 |
| Battery | 672 Wh Li-ion, 48 V, 14 Ah, down-tube type, 3.6 kg / 8 lb |
| Charge time | 4 hours to 75%, 6 hours to 100% |
| Wheel sizes | 700c, 29 in, 650B, 26 in, 24 in, 20 in, 16 in |
| Drivetrain | 1, 7, 8, 9 or 10 speed |
| Drop-out | 135 mm, vertical or horizontal |
| Brakes | Rim and disc compatible; optional regenerative braking |
| Throttle | Thumb or twist |
| Wireless | ANT+ and Bluetooth (BLE); Falco Flash app for Android and iPhone; Mac and Windows tools |
| Warranty | 5 years motor, 2 years battery, 1 year other parts |
Controls: pick what suits you
ANT+/BLE wireless module

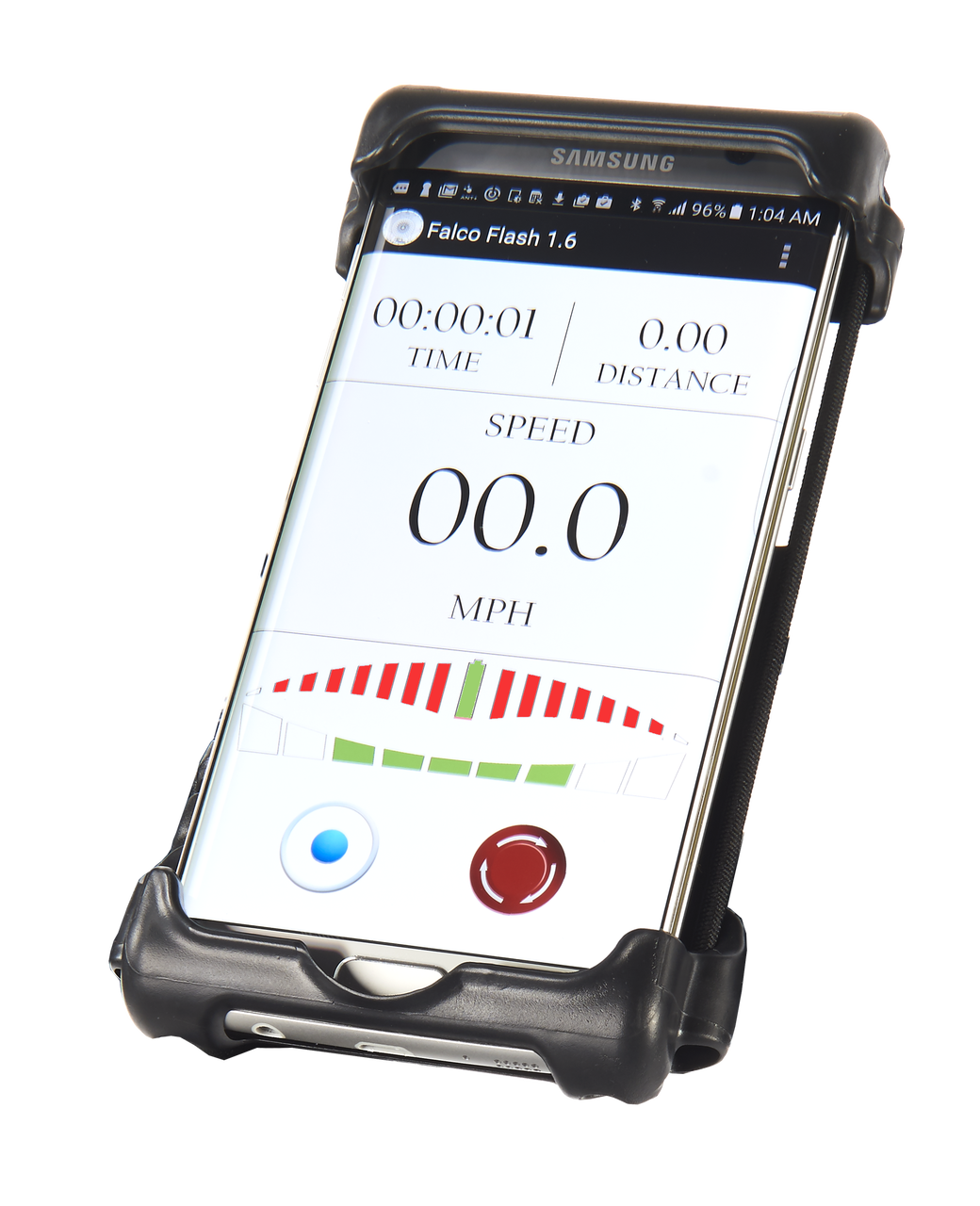

Needed for wireless mode. It connects the motor to the Falco Flash app on your phone so you can set assist and regeneration levels, change modes, read the sensors and more.
Wired console
An eBike computer on a five-foot cable that plugs straight into the motor. No charging, no pairing: plug in, switch on, ride. It comes with a plus/minus controller for power levels, brake and wheel circumference.

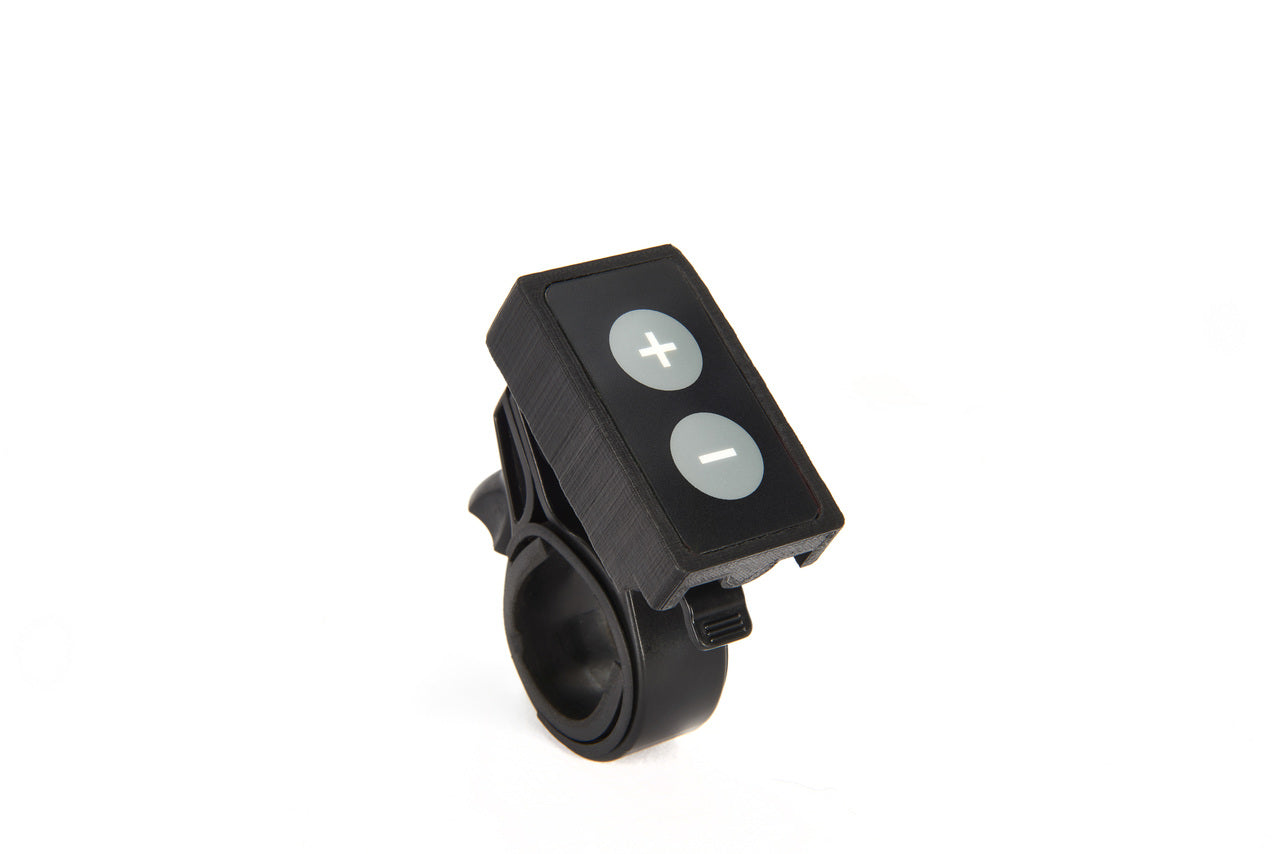

Wired plus/minus
A simple controller for raising and lowering the power level, switching between pedal-assist and regeneration, applying the brake, and reverse on trikes.
Combinations. The wired plus/minus and the wireless module work together: set things up in the app, then ride without your phone. The wireless module and the wired console cannot be used at the same time; choose one.
Why it rides differently
- Patented five-phase motor: zero freewheeling resistance, about 40% more power than a three-phase motor, high-efficiency assist and regeneration.
- Torque and speed sensing: power arrives in proportion to how hard you pedal, so it feels like your own legs, only stronger. Adjust the level any time.
- Clean installation: wireless console and plus/minus controller keep cables to a minimum.
- Five-year motor warranty: a direct drive has no gears to wear, and we have built them since 2011.
Manuals, guides and apps
- Installation 1-2-3
- Hxd wireless/wired console user guide
- User manual, new wired console
- Falco catalog
- Falco wheel technology
- Learning Center
- Falco Flash 5.0 app: Android · iPhone
- Falco Flash 4.0 app (older systems): Android · iPhone
Questions? Call 877-278-6323, book a free consultation, or read the FAQs.
