Falco f7.9 is a 750W, 672Wh, 48V, 14Ah eBike system. This system transforms any bike into a smart outdoor hybrid eBike or eTrike. It combines Zero Carbon high-speed bicycle commuting and recreation into one core direct drive technology with tremendous benefits to the end user. The f7.9 system delivers a huge range and can achieve speeds of up to 28 mph. With its lightweight lithium batteries mounted to the frame, you'll experience incredible power in the ride.
f7.9 SPECS
|
Speed
|
28mph (speed pedelec) 20mph(US)/15mph(EU)
|
Power (nominal)
|
750W
|
|
Range
|
120mi192km(L1 Assist) 84mi/130km (L3 Assist)
|
Wheel Sizes
|
700c, 29in, 650B, 26in, 24in, 20in, 16in
|
|
Motor
|
5 Phase, Falco eDrive Zero Freewheel Resistance
|
Drive Train Options
|
1/7/8/9/10 Speed
|
|
Motor Weight
|
5.9kg/13lbs
|
Brake Type
|
Optional Regenerative Brake/Rim Brake and Disc Brake Compatible
|
|
Max Torque
|
45Nm
|
Bicycle Dropout
|
135mm Vertical or Horizontal
|
|
Battery
|
672Wh Li-ion 48V, 14Ah Down Tube Type
|
Wireless Connectivity
|
ANT+, BLE
|
|
Charge Time
|
4 hours (75%) 6 hours (100%)
|
Smartphone
|
Android, iPhone
|
|
Battery Weight
|
3.6 kg/ 8 lbs
|
Device OS
|
Mac, Windows
|
|
Throttle Compatibility
|
Thumb and Twist
|

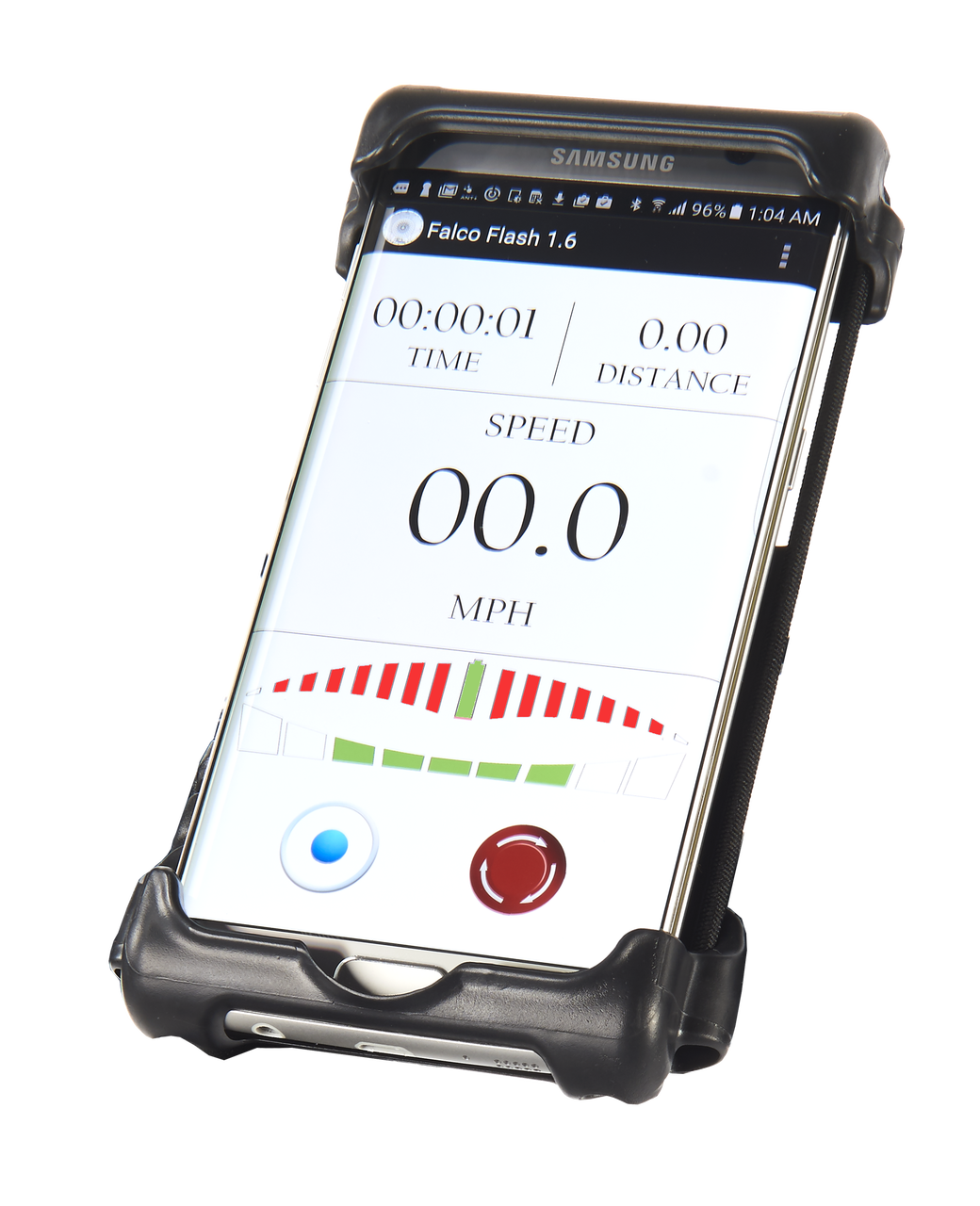

App
|
Falco Flash
|
Falco f7.9 consists of four main components:

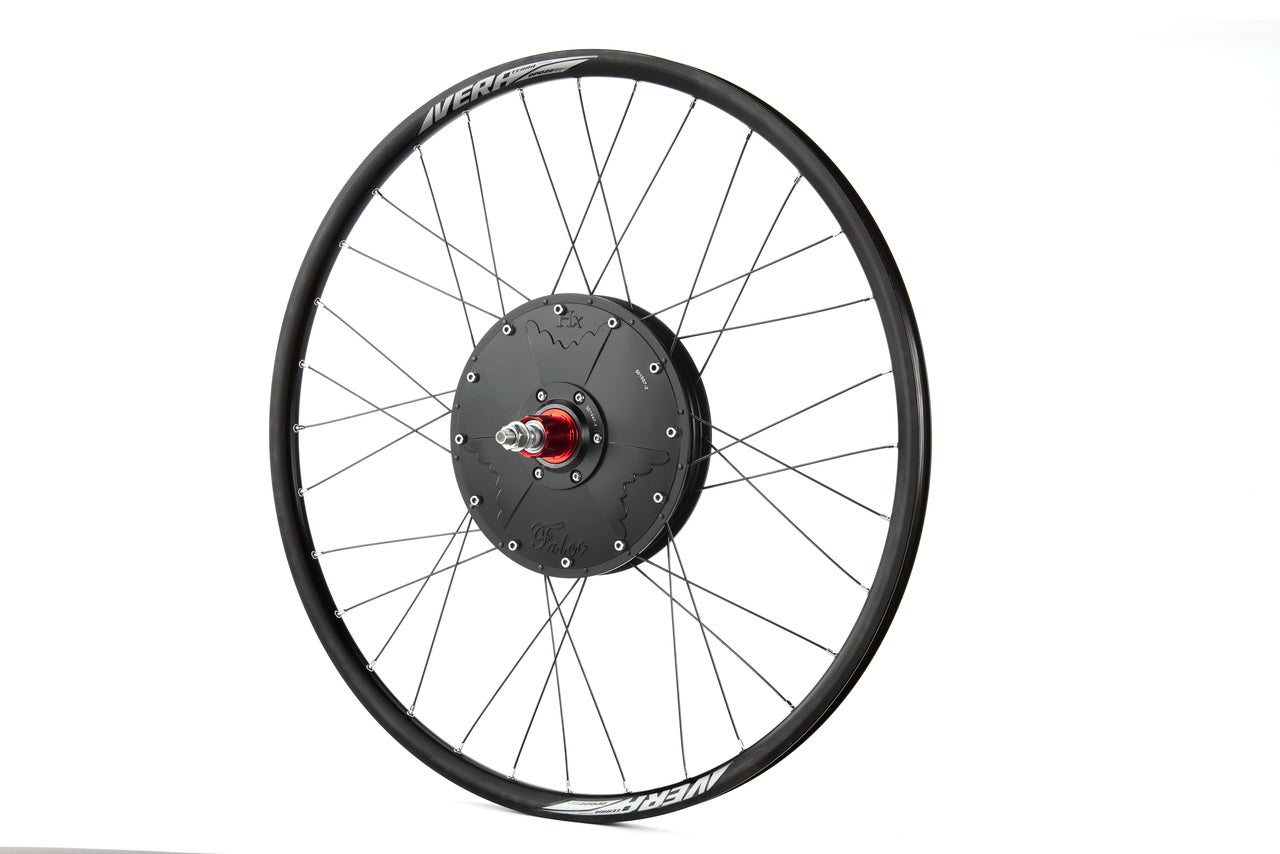

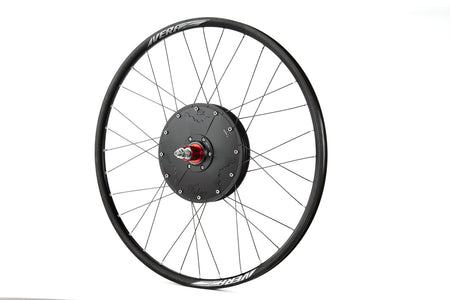

1. An electric wheel: It is an entirely built electric wheel with rim and spokes, ready to drop into your frame. It includes an ANT+/BLE Module. Tire, tube and disc brake are not included. They will need to be mounted separately.

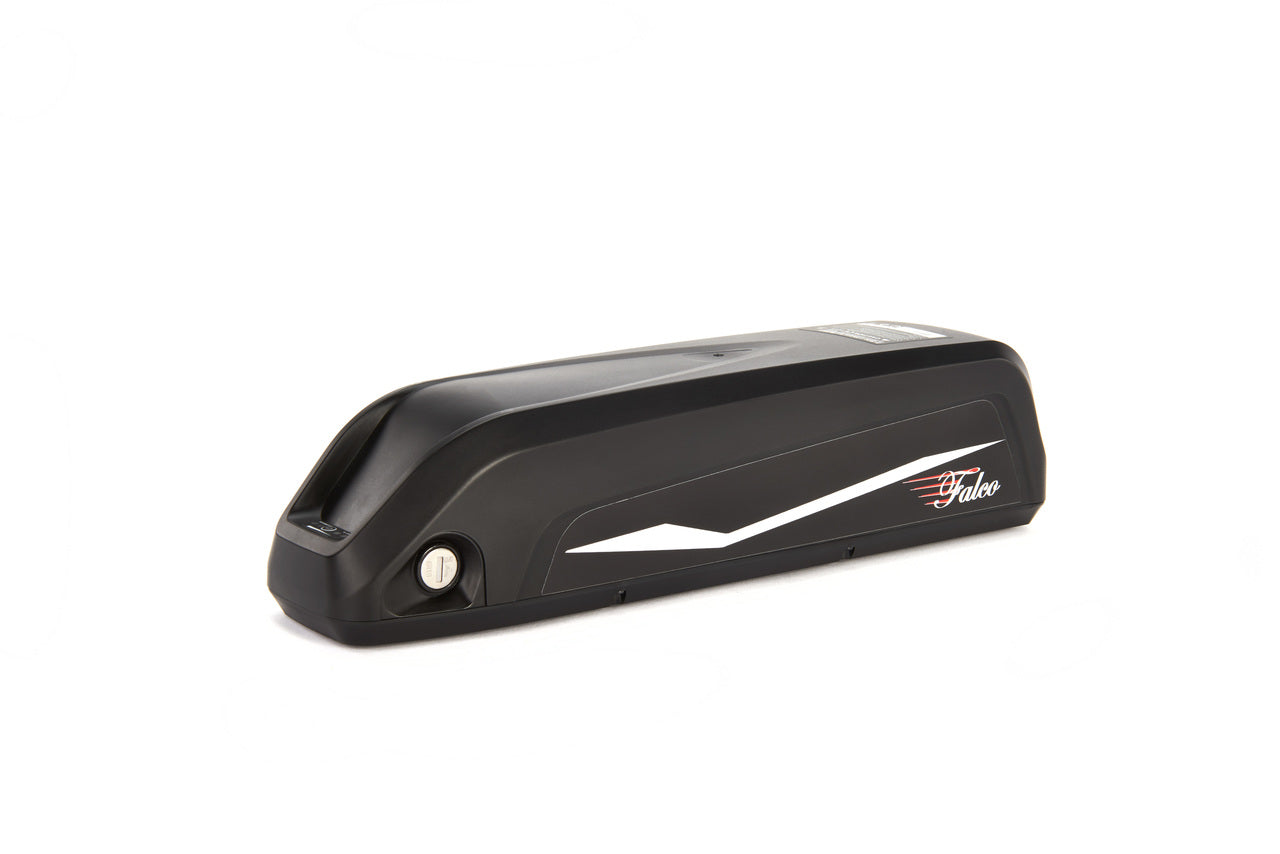

2. A Lithium battery: 672Wh Lithium battery with the top of the line Panasonic cells. Ready to mount to your favorite bike. It includes a charger and a battery holder.
3. Wired plus minus All in One (WPM-AIO) controls: e5.1 ebike system is shipped with wired plus minus controls which allow on the fly change of assist and regen levels with in-built throttle and brake functions.
TECHNOLOGY BEHIND FALCO f7.9
Falco f7.9 eBike system is driven by our pure passion for cycling. The main components of Falco f7.9 are:
-

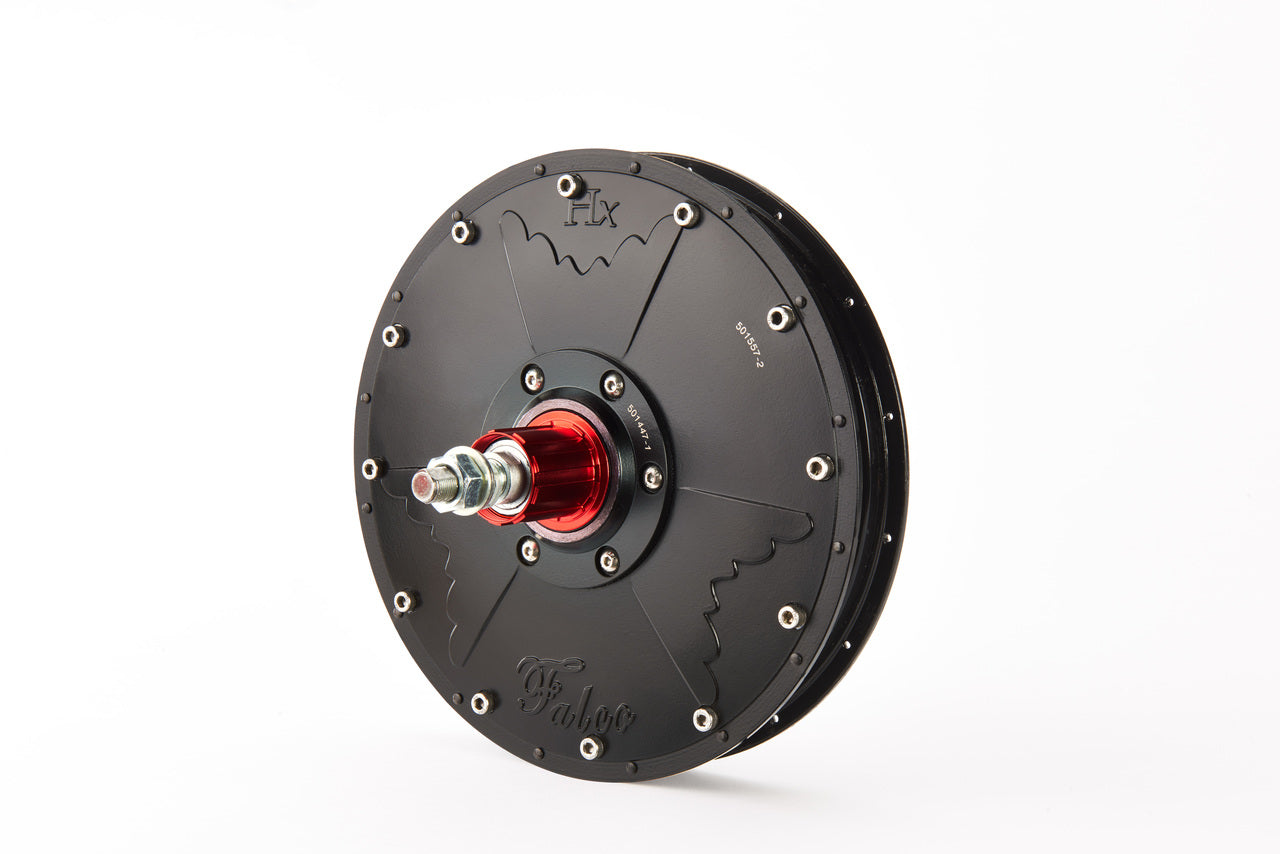

1. Patented five-phase motor technology:
-
o Zero free-wheeling resistance
-
o 40% more power delivery than a three-phase motor
-
o High efficiency commuting
-
o High efficiency regeneration
-
2. Wireless Operation:
For a cleaner looking and easy installation, you can use our wireless console
and plus/minus controller
-
3. ANT+ Technology Integration
-
o ANT+ offers a remarkable eco-system to enhance our cycling experience.
WHY HAVE A FIVE-YEAR WARRANTY ON FALCO eMOTORS?
A sound investment should last for a long time. Utmost reliability and performance dictate Falco's direct drive technology. We want our customers to experience not only the ultimate performance and reliability but also the comfort of owning a world class eBike system.
