Product Details

Falco simplicity f7.7 is a 750W, 672Wh, 48V, 14Ah eBike system that transforms any bike into an innovative outdoor hybrid eBike or eTrike. It combines Zero-Carbon high-speed bicycle commuting and recreation into one core direct drive technology with tremendous benefits to the end user. The f7.7 system delivers a vast range and can achieve up to 28 mph speeds. With its lightweight lithium batteries mounted to the frame, you'll experience incredible power in the ride.

 f7.7 SPECS

Speed

28mph (speed pedelec) 20mph(US)/15mph(EU)

Power (nominal)

750W

Range

120mi192km(L1 Assist) 84mi/130km (L3 Assist)

Wheel Sizes

700c, 29in, 650B, 26in, 24in, 20in

Motor

5 Phase, Falco eDrive Zero Freewheel Resistance

Drive Train Options

1/7/8/9/10 Speed

Motor Weight

5.9kg/13 lbs

Brake Type

Optional Regenerative Brake/Rim Brake and Disc Brake Compatible

Max Torque

45Nm

Bicycle Dropout

135mm Vertical or Horizontal

Battery

672Wh Li-ion 48V, 14Ah Downtube Type

Wireless Connectivity

BLE

Charge Time

4 hours (75%) 6 hours (100%)

Smartphone

Android, iOS (iPhone)

Battery Weight

3.6 kg/ 8 lbs

Device OS

Mac, Windows

Throttle Compatibility

Thumb and Twist

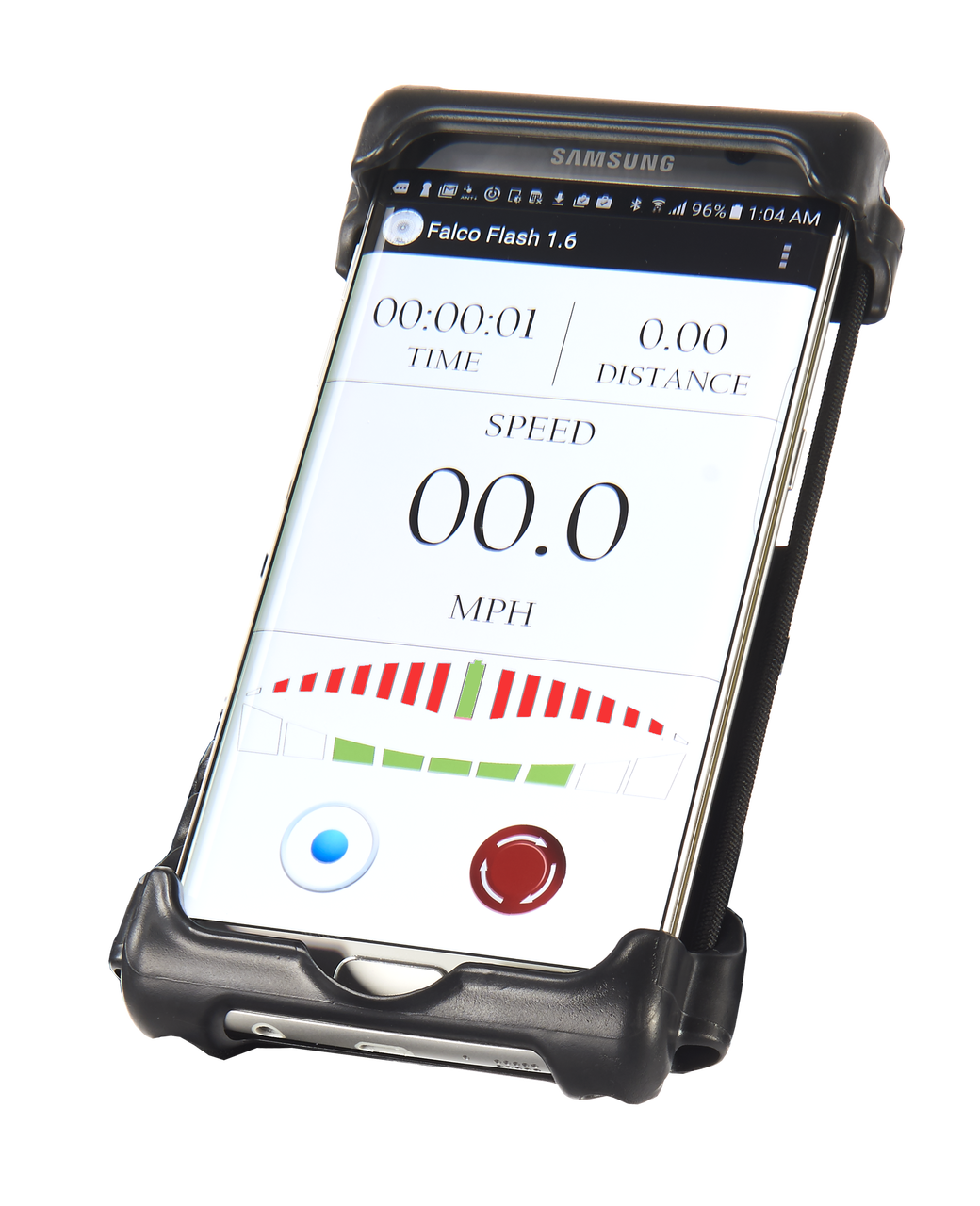

App

Falco Flash

Falco f7.7 consists of four main components:

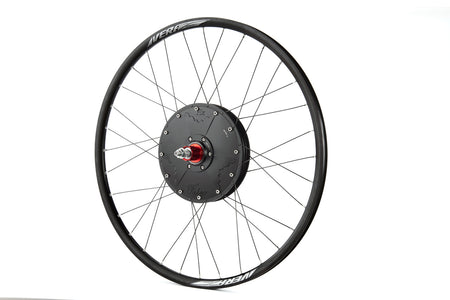

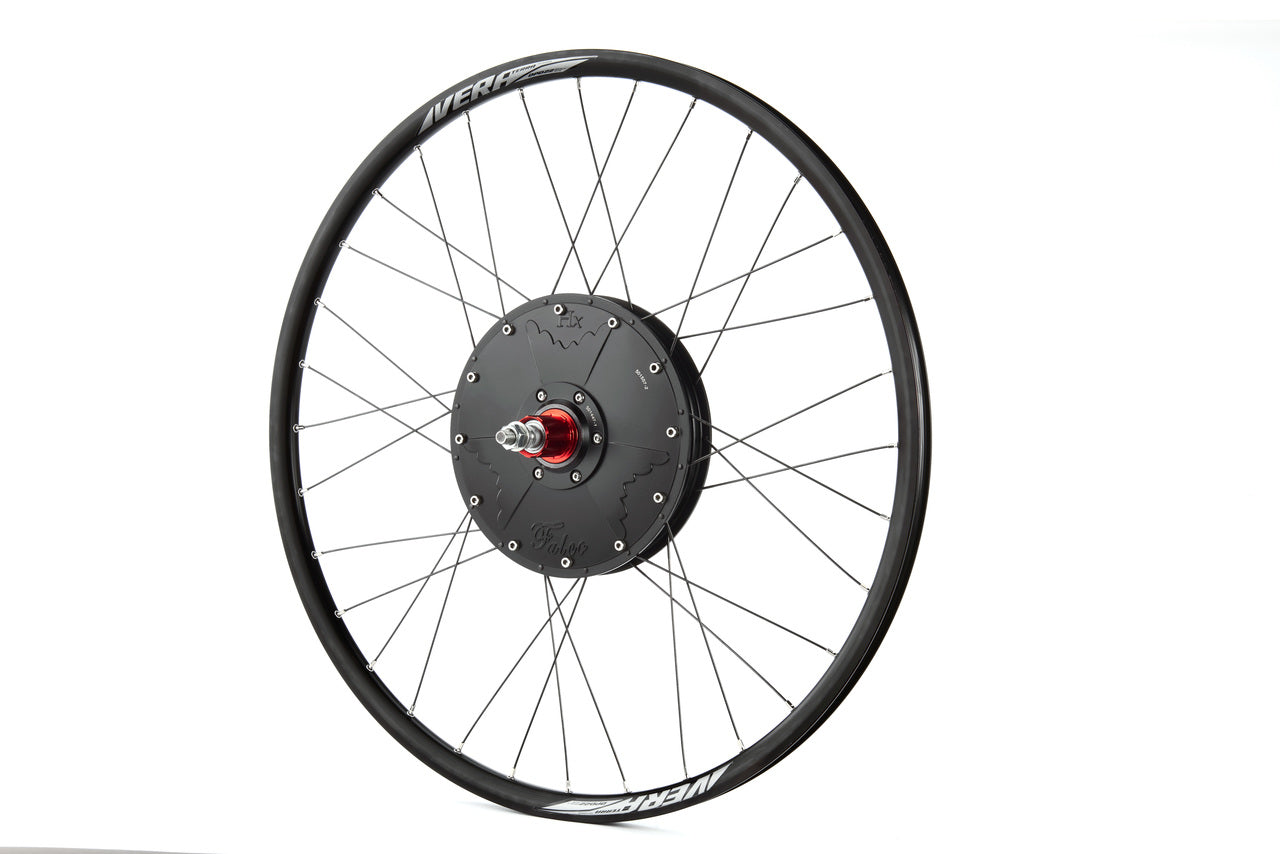

  1. An electric wheel is an entirely built electric wheel with rim and spokes, ready to drop into your frame. It includes an ANT+ Module. Tire, tube, and disc brake are not included. They will need to be mounted separately.

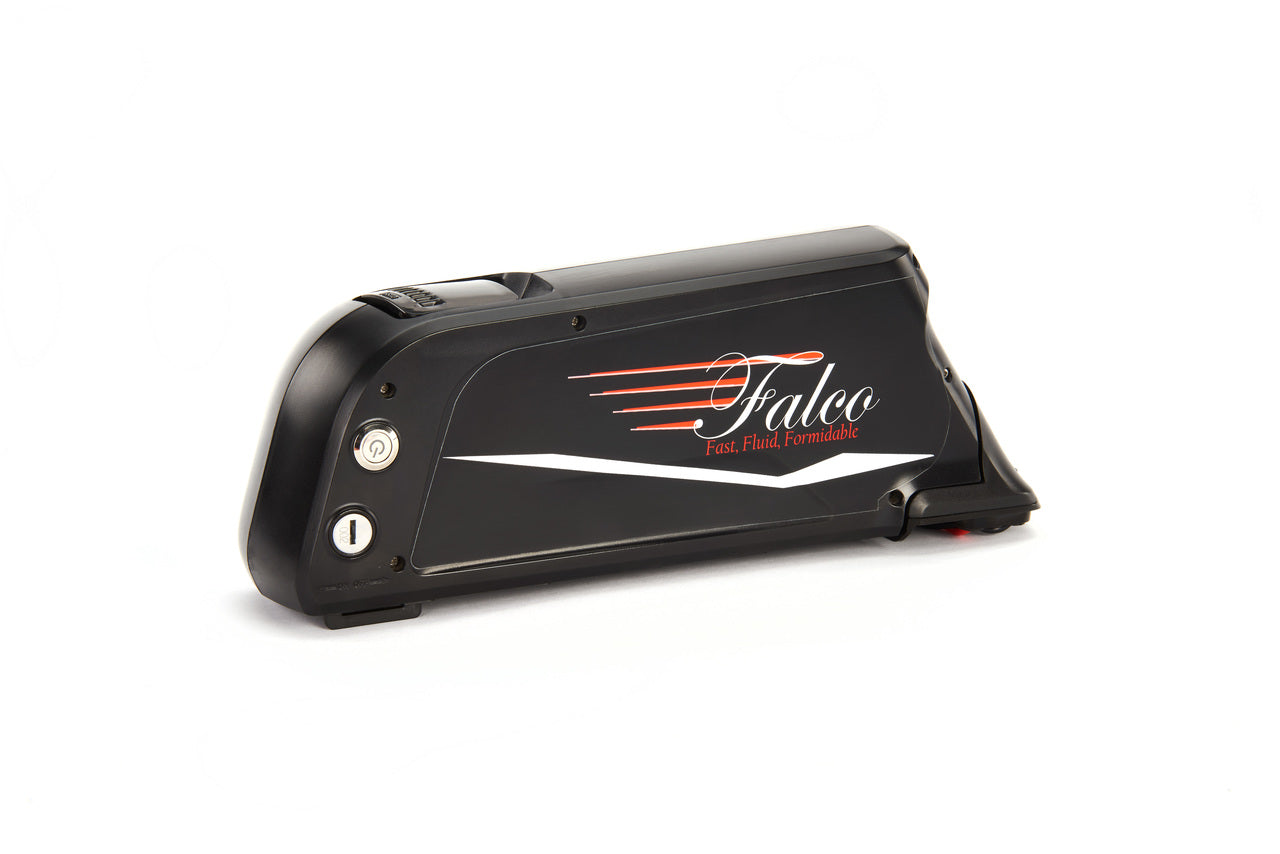

    2. A Lithium battery: This 672Wh Lithium battery has top-of-the-line Panasonic cells and is ready to mount to your favorite bike. It includes a charger and a holder.


    3. Wired plus minus All in One (WPM-AIO) controls (Optional): The f7.7 simplicity e-bike system can be shipped with wired plus minus controls (Based on your configuration), which allow on-the-fly changes of assist and regen levels, and they have in-built throttle and brake functions.



TECHNOLOGY BEHIND FALCO f7.7

Falco f7.7 eBike system is driven by our pure passion for cycling. The main components of Falco f7.7 are:

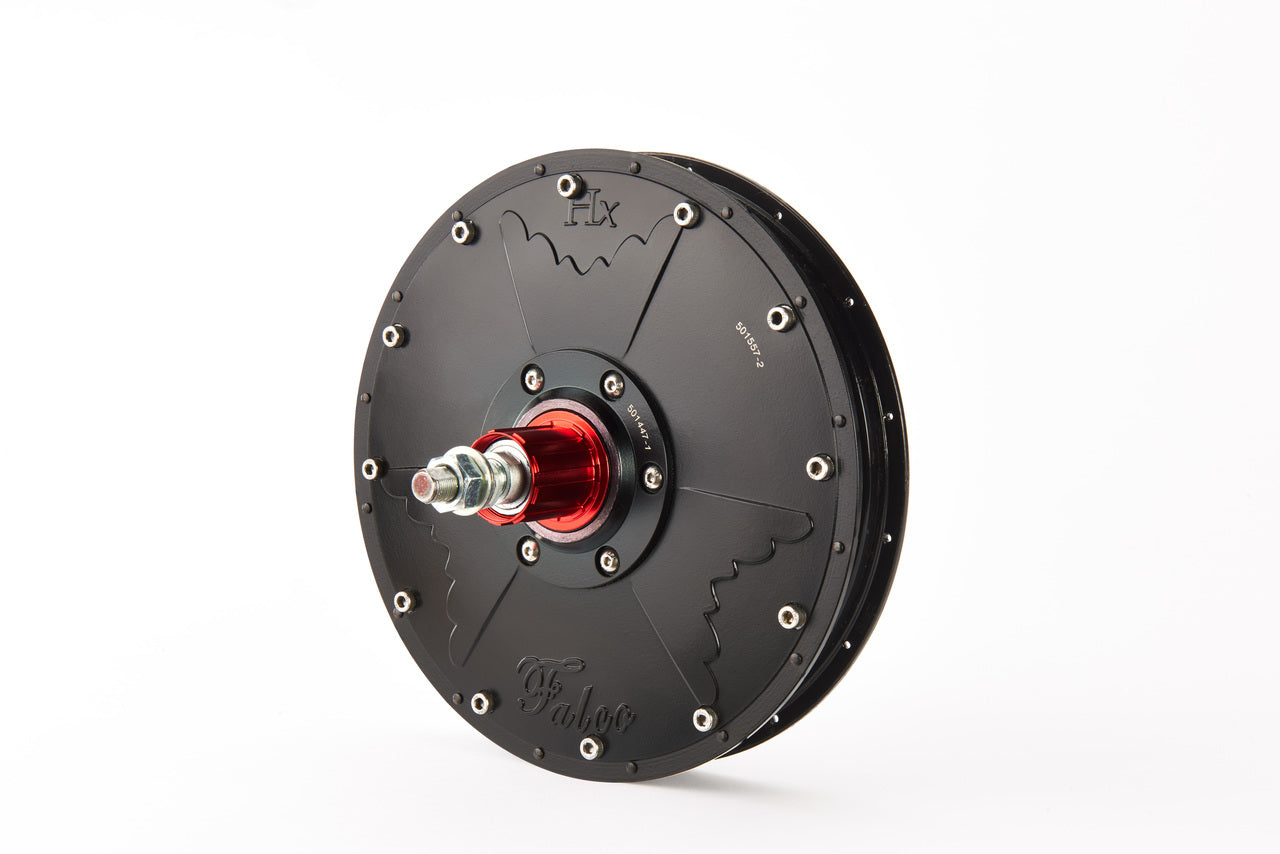

  1. 1.    Patented five-phase motor technology:
  • o    Zero free-wheeling resistance
  • o    40% more power delivery than a three-phase motor
  • o    High efficiency commuting
  • o    High efficiency regeneration
  1. 2.    Wireless Operation
           For a cleaner looking and easier installation, you can use our wireless console
           and p
    lus/minus controller
  1. 3.   BLE Technology Integration
  • o    BLE offers a remarkable ecosystem to enhance our cycling experience;

WHY HAVE A FIVE-YEAR WARRANTY ON FALCO eMOTORS?

A sound investment should last a long time. Falco's direct drive technology dictates utmost reliability and performance. We want our customers to experience not only the ultimate performance and reliability but also the comfort of owning a world-class eBike system.
