Product Details
Falco Simplicity e5.3 is a 500W, 417Wh, 36V, 11.6Ah eBike system. This system transforms any bike into a smart outdoor hybrid eBike or eTrike. It combines Zero Carbon high-speed bicycle commuting and recreation into one core direct drive technology with tremendous benefits to the end user. The Simplicity e5.3 system delivers a huge range and can achieve speeds up to 28 mph. With its lightweight lithium batteries mounted to the frame, you'll experience incredible power in the ride.
e5.3 SPECS
|
Speed |
28mph (speed pedelec) 20mph(US)/15mph(EU) |
Power (nominal) |
500W |
|
Range |
70mi/112km(L1 Assist) 50mi/80km (L3 Assist) |
Wheel Sizes |
700c, 29in, 650B, 26in, 24in, 20in |
|
Motor |
5 Phase, Falco eDrive Zero Freewheel Resistance |
Drive Train Options |
1/7/8/9/10 Speed |
|
Motor Weight |
5.9kg/13lbs |
Brake Type |
Optional Regenerative Brake/Rim Brake and Disc Brake Compatible |
|
Max Torque |
40Nm |
Bicycle Dropout |
135mm Vertical or Horizontal |
|
Battery |
400Wh Li-ion 36V, 11.6Ah Rear Rack Type |
Wireless Connectivity |
ANT+/BLE |
|
Charge Time |
4 hours (75%) 6 hours (100%) |
Smartphone |
Android, iOS (iPhone) |
|
Battery Weight |
2.5 kg/ 5.5 lbs |
Device OS |
Mac, Windows |
|
Throttle Compatibility |
Thumb and Twist |

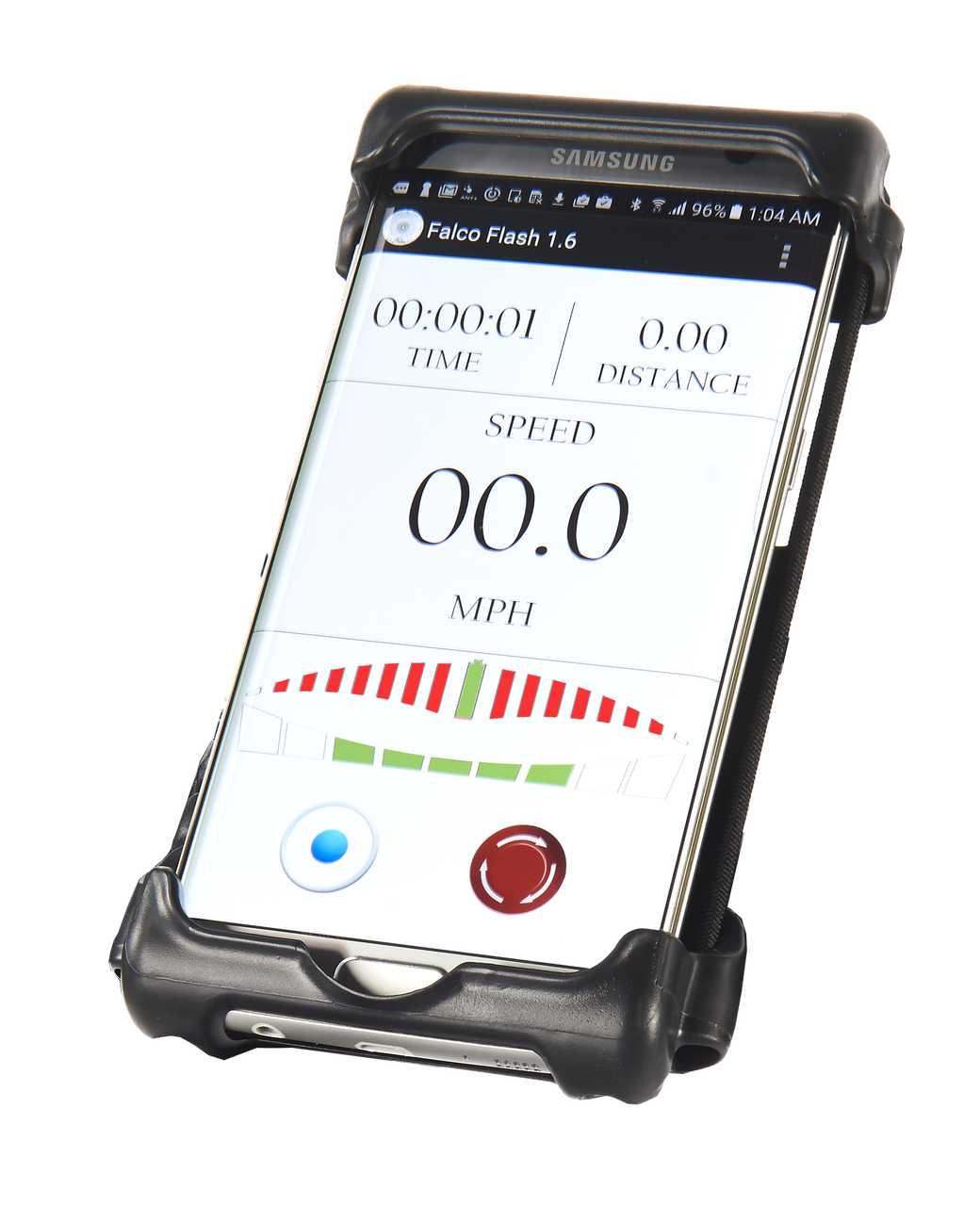

App |
Falco Flash |

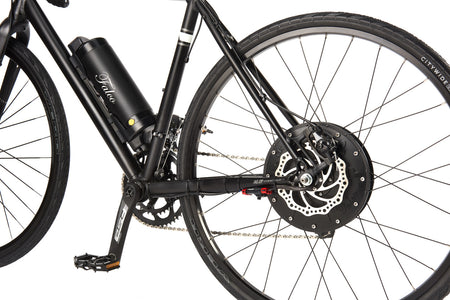

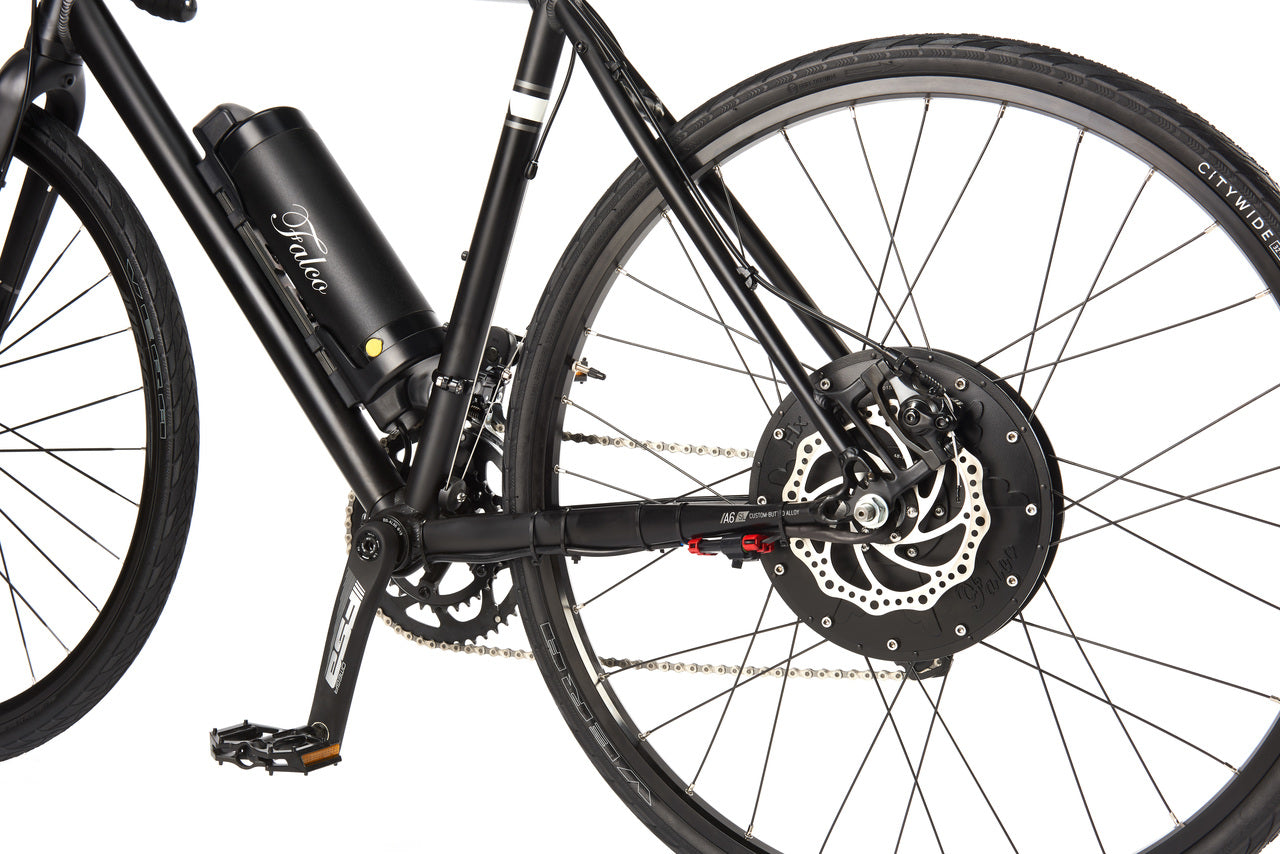

Falco Simplicity e5.3 consists of three main components:

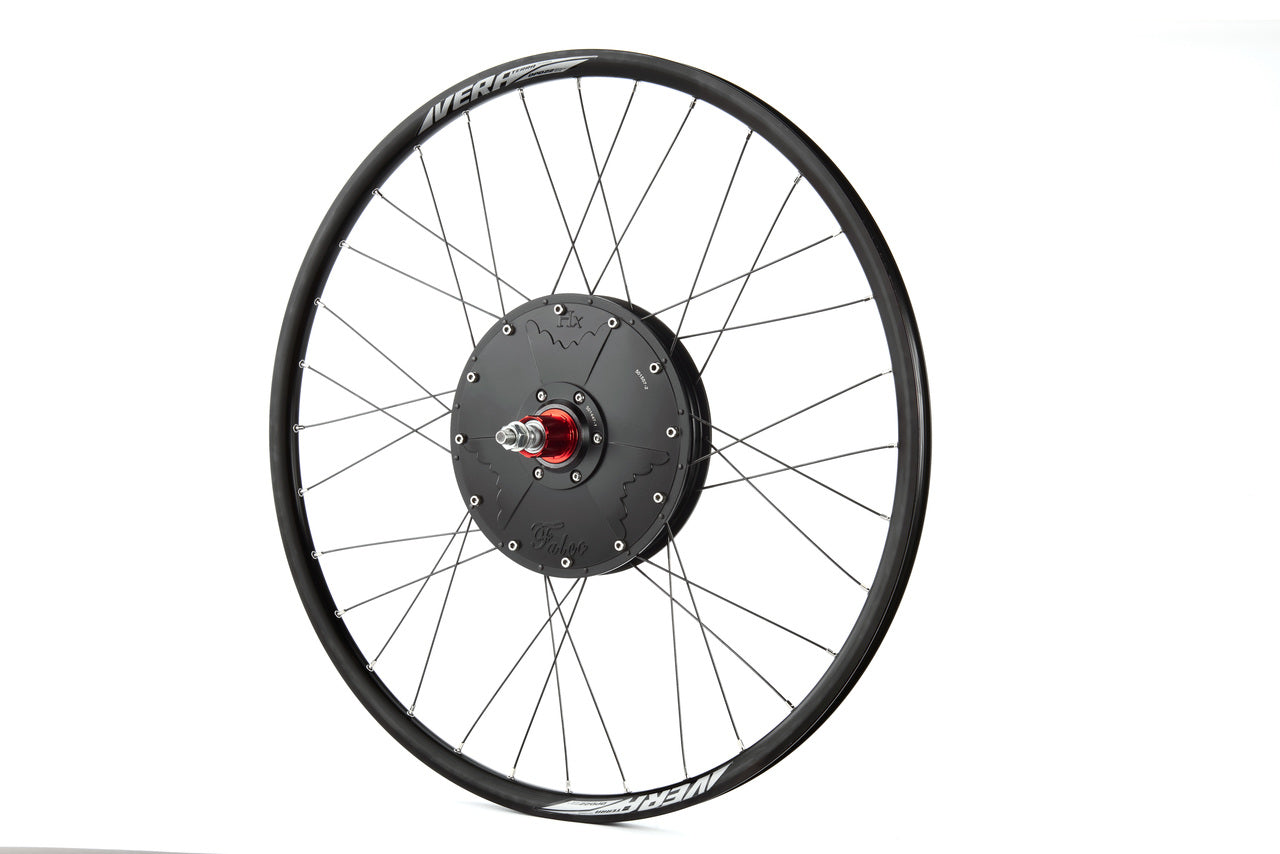

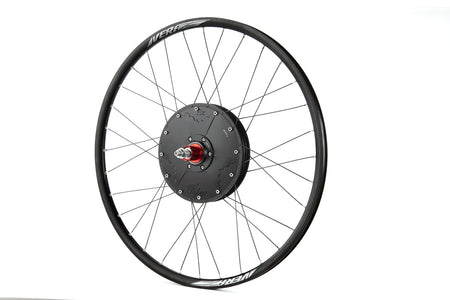

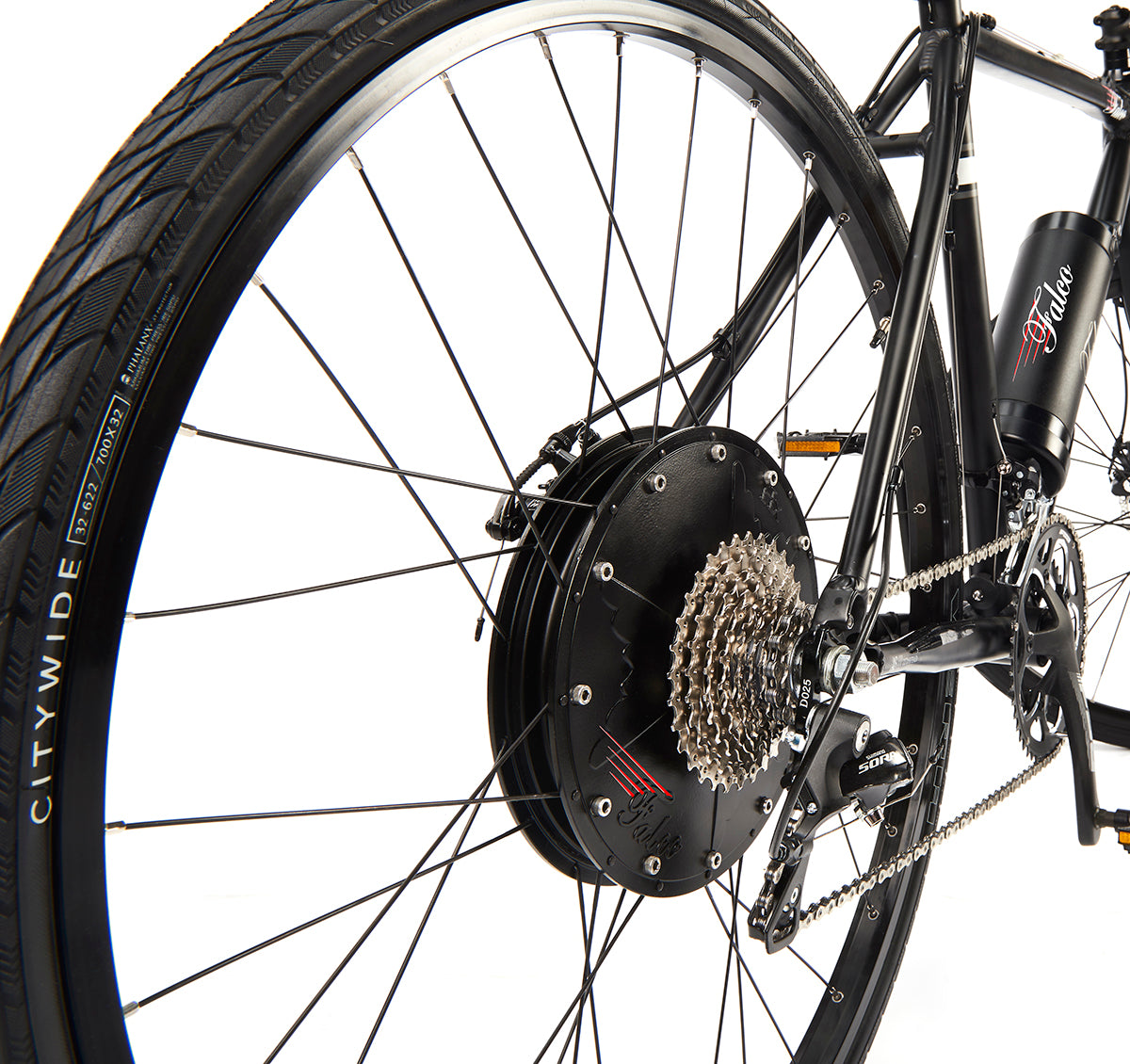

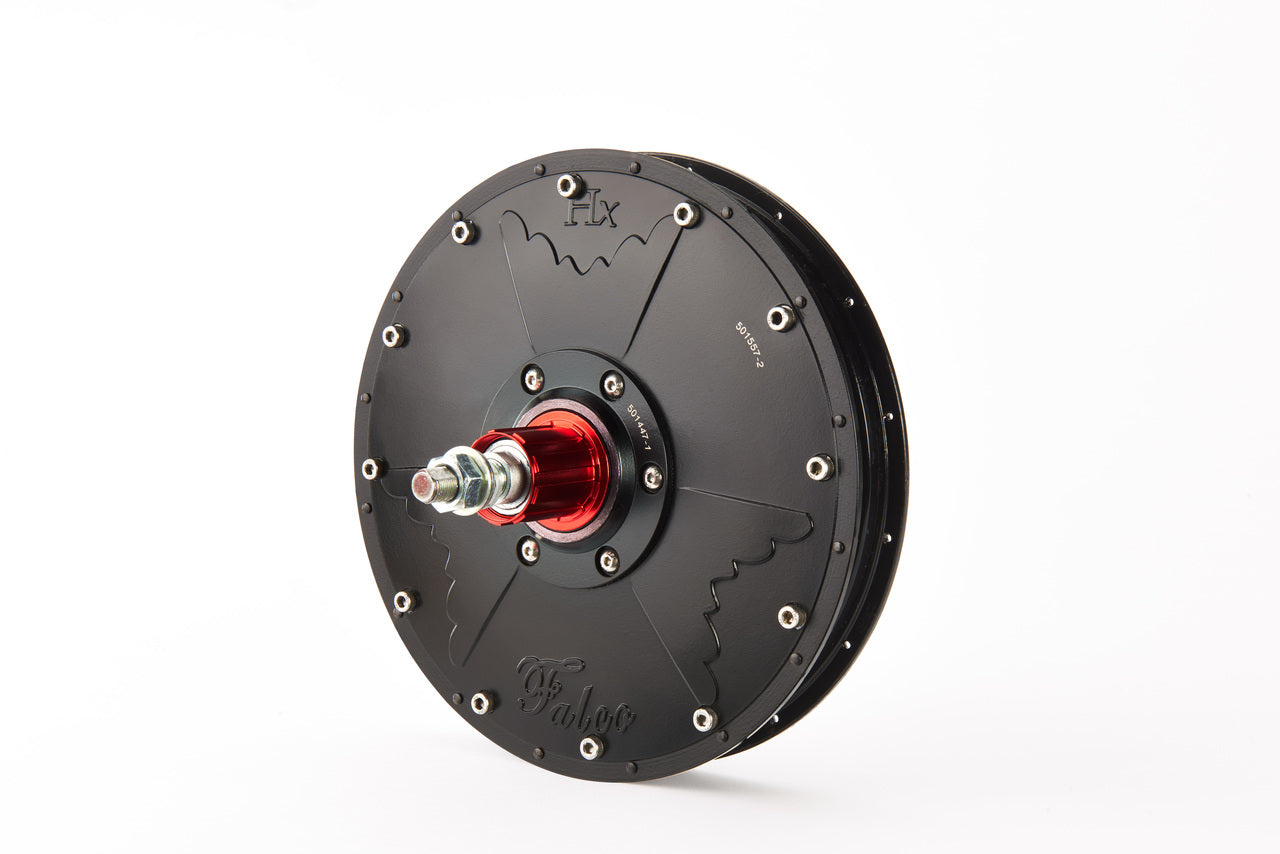

1. An electric wheel: It is an entirely built electric wheel with a rim and spokes, ready to drop into your frame. It includes an ANT+ Module. Tire, tube, and disc brake are not included. They will need to be mounted separately.

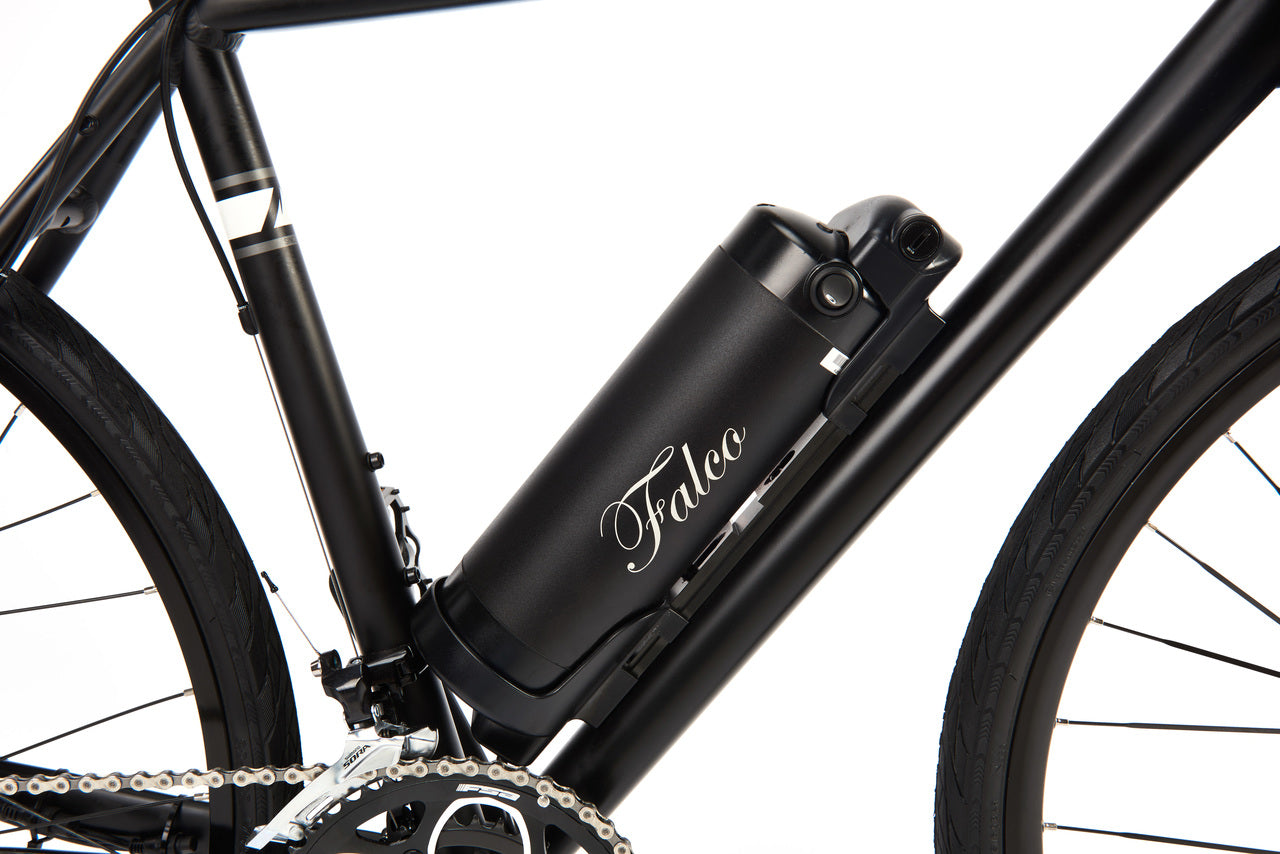

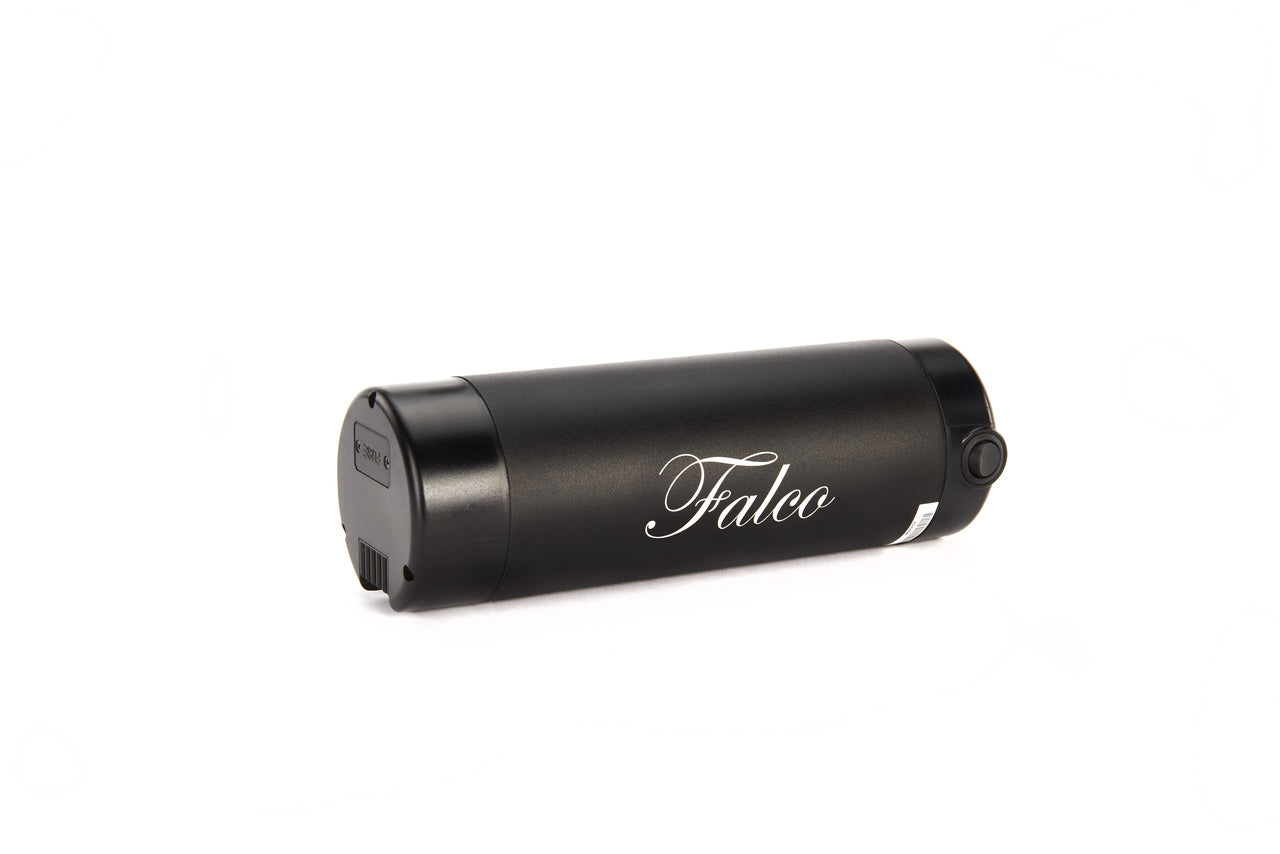

2. A Lithium battery: 400Wh Lithium battery with the top-of-the-line Panasonic cells. Ready to mount to your favorite bike? It includes a charger.
3. Wired plus minus All in One (WPM-AIO) controls: The e5.1 e-bike system is shipped with wired plus minus controls, which allow on-the-fly change of assist and regen levels with in-built throttle and brake functions.
TECHNOLOGY BEHIND FALCO Simplicity e5.3
Falco Simplicity e5.3 eBike system is driven by our pure passion for cycling. The main components of Falco Simplicity e5.3 are:
- 1. Patented five-phase motor technology:
- Zero free-wheeling resistance
- 40% more power delivery than a three-phase motor
- High-efficiency commuting
- High-efficiency regeneration
- 2. Wireless Operation;
For a cleaner-looking and easy installation, you can use our wireless console
and/minus controller - 3. ANT+/BLE Technology Integration
- ANT+ offers a remarkable eco-system to enhance our cycling experience
WHY HAVE A FIVE-YEAR WARRANTY ON FALCO eMOTORS?
A sound investment should last a long time. Falco's direct-drive technology dictates utmost reliability and performance. We want our customers to experience the ultimate performance, reliability, and comfort of owning a world-class eBike system.
